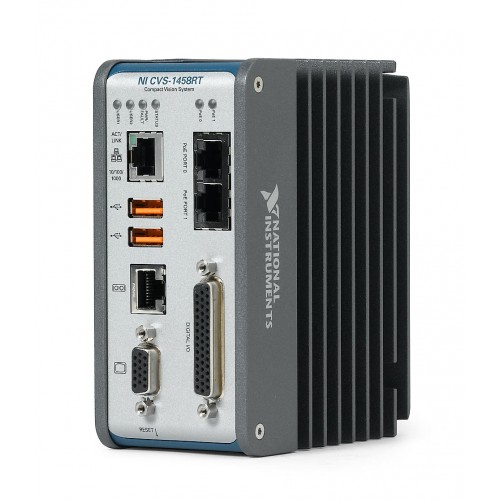

National Instruments CVS-1458RT Bundle Real-time compact vision system bundle
1 image: Click to enlarge
National Instruments · NI Compact Vision System

CVS-1458RT Bundle

The NI CVS-1458RT Bundle is a real-time GigE Vision system with a quad-core Intel Atom processor and NI Linux Real-Time.

ManufacturerNational Instruments
ModelCVS-1458RT Bundle
Part Number784067-01
Product TypeReal-time compact vision system bundle
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CVS-1458RT Bundle

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Processor1.91 GHz quad-core Intel Atom
Operating systemNI Linux Real-Time
Camera connectionsTwo PoE-enabled GigE Vision ports
USB connectivityTwo USB 2.0 ports
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The CVS-1458RT acquires, processes and displays camera images. Once configured, it can run applications without a development computer connected.

NI identifies bundle 784067-01 as the CVS-1458RT with Vision Builder AI application development software. Software entitlement and the contents of this catalog unit require separate confirmation.

  • Dedicated camera-port bandwidth with Power over Ethernet.
  • FPGA-based isolated and TTL digital I/O.
  • Hardware-timed network triggering and inspection-result synchronization with industrial I/O.
Verified specifications

Technical data

Verified product specifications.

ProcessorQuad-core Intel Atom
Processor frequency1.91 GHz
Controller OSLabVIEW Real-Time (NI Linux Real-Time)
Total Ethernet ports3 ports
USB ports2 × USB 2.0
Camera ports2 × PoE-enabled GigE Vision
Digital I/O connector44-pin
Isolated digital I/O8 inputs and 8 outputs
TTL digital I/O8 bidirectional lines
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact Vision System

Machine vision platform

CVS-1458RT Bundle

Real-time GigE Vision controller bundle

Compatibility

Supports GigE Vision cameras through its PoE-enabled camera ports.

Confirm software entitlement, camera requirements and included accessories for this specific unit.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

CVS-1458RT Bundle — Official Product PageProduct Page · ni.com
Open →
NI CVS-1458RT User ManualUser Manual · docs-be.ni.com
Open →
CVS-1458RT Hardware, Connections and Configuration ManualTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which camera interface does the CVS-1458RT use?

It has two PoE-enabled GigE Vision camera ports.

Does it need a development computer during operation?

After configuration, it can run applications without a development computer connected.

What does NI identify as the original bundle?

NI lists part 784067-01 as a CVS-1458RT with Vision Builder AI application development software. This does not establish the software entitlement or included items for this specific unit.
