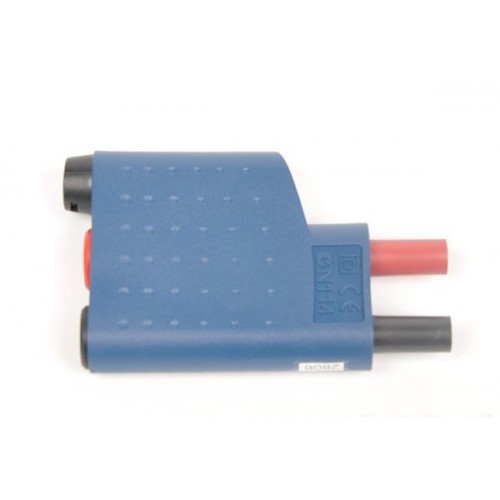

The NI CSM-10A is an external 10 A current shunt that lets a DMM determine current from the voltage across a precision resistor.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The CSM-10A connects externally to a DMM rather than occupying a chassis slot. Current enters HI and returns through LO; the meter reads the shunt voltage.
Verified product specifications.
| Maximum working current, HI to LO | 10 A |
|---|---|
| Sense resistance | 0.01 Ω |
| Accuracy, DC–25 kHz | ±0.5; typical at 25 °C, per revision D % |
| Sense resistor temperature coefficient | 20 ppm/°C |
| Burden voltage | 400 mV |
| Maximum working voltage, either input to earth | 250; Installation Category II V |
| Fuse | 12.5 A/250 V, 5 × 20 mm, quick-acting |
| Operating temperature | 0 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Voltage readout
External current shunt
NI identifies the NI PCMCIA-4050, PXI/PCI-4060 and PXI-4070 in the installation guide.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Divide measured shunt voltage by 0.01 Ω. The specified conversion is 1 mV per 100 mA.
No. Include the voltmeter's mode and range accuracy error as well as the shunt error.
