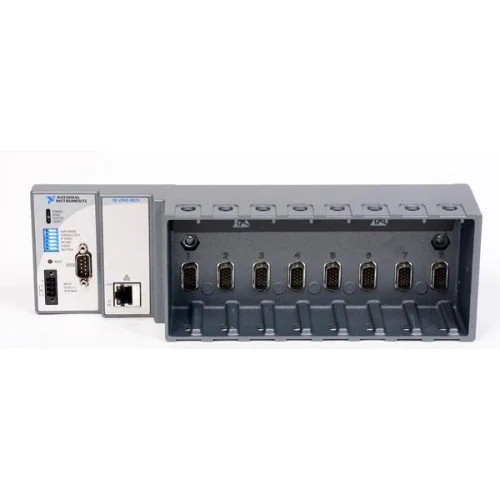

The NI cRIO-9073 is an 8-slot CompactRIO embedded controller with a 266 MHz CPU and a reconfigurable FPGA for control and monitoring systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The cRIO-9073 combines a real-time controller and reconfigurable chassis in one unit. Its slots accept C Series I/O modules.
NI describes this rugged, fanless controller as suitable for advanced control and monitoring applications. The processor and FPGA provide distinct resources for embedded application execution and hardware logic.
Verified product specifications.
| Slot count | 8 slots |
|---|---|
| CPU clock | 266 MHz |
| DRAM | 64 MB |
| Nonvolatile memory | 128 minimum MB |
| FPGA | Xilinx Spartan-3 2M |
| Ethernet | One port; 10Base-T/100Base-TX |
| Serial interface | RS-232; maximum 115,200 bps |
| Operating system | VxWorks |
| Power input | 19–30 VDC |
| Maximum power consumption | 20 W |
| Operating temperature | -20 to 55 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Embedded control platform
Integrated controller and chassis
C Series I/O modules
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. It is an integrated CompactRIO controller and chassis that accepts C Series I/O modules.
NI identifies VxWorks as the operating system for the cRIO-9073.
One. The second Ethernet port in the shared manual applies only to the cRIO-9074.
