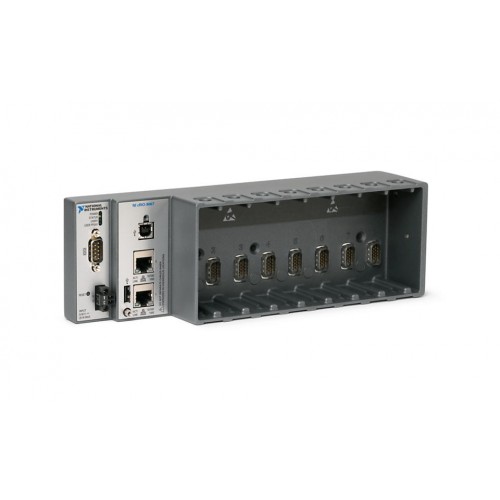

National Instruments cRIO-9067 Embedded real-time controller with integrated FPGA and 8-slot chassis

1 image: Click to enlarge

National Instruments · CompactRIO

cRIO-9067

Name: cRIO-9067
Brand: National Instruments

The NI cRIO-9067 is a fanless, 8-slot CompactRIO controller for embedded control and monitoring. It combines a real-time processor with a reconfigurable FPGA.

ManufacturerNational Instruments

ModelcRIO-9067

Part Number783170-01

Product TypeEmbedded real-time controller with integrated FPGA and 8-slot chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9067

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

I/O slots8

CPU667 MHz dual-core

Memory512 MB DRAM; 1 GB storage

FPGAZynq-7020

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Within the CompactRIO platform, the cRIO-9067 provides integrated processing and modular I/O capacity for control and monitoring systems.

Fanless embedded design.
Two RJ-45 Gigabit Ethernet ports.
USB host and RS-232 serial connectivity.

Verified specifications

Technical data

Verified product specifications.

Processor SoC	Xilinx Zynq-7000 XC7Z020
Operating system	NI Linux Real-Time (32-bit)
USB interfaces	USB 2.0 Hi-Speed: Type A host and Type B device
Input voltage	9 to 30 VDC
Operating temperature	-20 to 55; mounting-dependent derating may apply °C
Unloaded dimensions	272.8 × 88.1 × 62.3 mm
Unloaded mass	1050 g
Ingress protection	IP40; indoor use only

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9067

8-slot controller

I/O ecosystem

C Series modules

Confirm individual module support and the software release combination before configuring a system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9067 Product PageManufacturer Product Page · ni.com

Open →

NI cRIO-9067 SpecificationsSpecifications PDF · download.ni.com

Open →

cRIO-9067 Dimensional DrawingsDimensional Drawings And CAD Resources · ni.com

Open →

cRIO-9067 Mechanical Drawings and CAD ModelsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is LabVIEW FPGA Module required?

It is required to program the user-accessible FPGA, but not when using Scan Interface mode.

What software minimums does NI document?

The specifications list LabVIEW 2014, LabVIEW Real-Time Module 2014 and NI-RIO Device Drivers 14.0 as minimum versions. Verify the exact release combination for your system.
