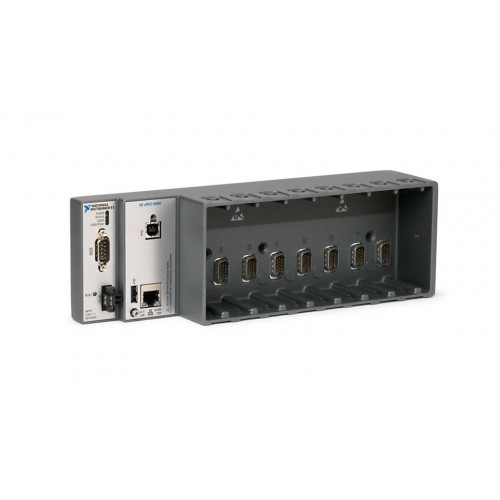

National Instruments CRIO-9066 product image 1
National Instruments CRIO-9066 product image 1 additional viewNational Instruments CRIO-9066 product image 1 additional viewNational Instruments CRIO-9066 product image 1 additional viewNational Instruments CRIO-9066 product image 1 additional viewNational Instruments CRIO-9066 product image 1 additional view
6 images: additional views below.Click to enlarge
National Instruments · CompactRIO

cRIO-9066

The NI cRIO-9066 combines an eight-slot CompactRIO chassis, a 667 MHz dual-core processor and a Zynq-7020 FPGA. It runs NI Linux Real-Time for embedded control and monitoring applications.

ManufacturerNational Instruments
ModelcRIO-9066
Part Number783169-01
Product TypeEmbedded real-time controller with integrated 8-slot chassis and FPGA
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9066

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
I/O platform8-slot CompactRIO
Processor667 MHz dual-core ARM Cortex-A9
Memory256 MB DRAM; 512 MB nonvolatile storage
FPGAXilinx Zynq-7000 XC7Z020
Operating temperature-20 °C to 55 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This fanless embedded controller integrates real-time processing and reconfigurable FPGA hardware with C Series module connectivity. Its integrated chassis provides eight module slots.

Network and peripheral connections include one tri-speed RJ-45 Ethernet port, one USB host port, one USB device port and one RS-232 serial port.

  • NI Linux Real-Time operating system, 32-bit.
  • User-programmable FPGA for C Series module interaction.
  • USB 2.0 Hi-Speed host and device interfaces.
  • 9 V DC to 30 V DC input power range.
Verified specifications

Technical data

Verified product specifications.

Module slots8
ProcessorDual-core ARM Cortex-A9
Processor frequency667 MHz
DRAM256 MB
Nonvolatile memory512 MB
FPGA / SoCXilinx Zynq-7000 XC7Z020
Ethernet rates10 / 100 / 1000, auto-negotiated Mb/s
Input voltage9 to 30 V DC
Maximum power input with eight C Series modules25 W
Dimensions272.8 × 88.1 × 62.3 mm
Weight1048 g
Operating temperature-20 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control and I/O platform

cRIO-9066

Integrated controller, FPGA and eight-slot chassis

I/O modules

C Series modules

Confirm the selected C Series modules, programming mode and software versions before configuring a system.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9066 Product PageProduct Page · ni.com
Open →
NI cRIO-9066 SpecificationsSpecifications PDF · download.ni.com
Open →
NI cRIO-9066 User ManualUser Manual PDF · download.ni.com
Open →
cRIO-9066 Product CertificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the cRIO-9066 include an integrated chassis?

Yes. It combines the controller and FPGA with an eight-slot CompactRIO chassis for C Series modules.

Is LabVIEW FPGA Module required?

It is required to program the user-accessible FPGA, but is not required when using Scan Interface mode.

Which operating system does the cRIO-9066 use?

The controller uses NI Linux Real-Time, 32-bit.
