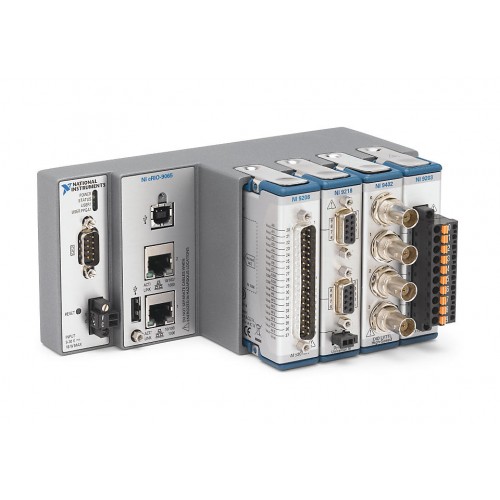

National Instruments cRIO-9065 Embedded real-time controller with integrated 4-slot chassis
1 image: Click to enlarge
National Instruments · CompactRIO

cRIO-9065

The NI cRIO-9065 is a fanless, 4-slot CompactRIO embedded controller for control and monitoring. It combines a real-time processor with a Zynq-7020 FPGA.

ManufacturerNational Instruments
ModelcRIO-9065
Part Number783832-01 · 783832-02
Product TypeEmbedded real-time controller with integrated 4-slot chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9065

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Module slots4
Processor667 MHz dual-core ARM Cortex-A9
Memory512 MB DRAM; 1 GB nonvolatile storage
Operating systemNI Linux Real-Time (32-bit)
Operating temperature-40 to 70 °C; mounting restrictions apply
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9065 integrates processing, reconfigurable FPGA hardware, and four module slots in one CompactRIO controller. Two Gigabit Ethernet ports, USB host and device ports, and RS-232 provide external connectivity.

C Series modules install directly into the controller. The getting started guide covers host software installation, module installation, grounding, power wiring, and initial configuration.

  • Zynq-7020 reconfigurable FPGA.
  • Two tri-speed RJ-45 Gigabit Ethernet ports.
  • USB 2.0 host Type-A and device Type-B connections.
  • RS-232 serial connectivity.
Verified specifications

Technical data

Verified product specifications.

C Series module slots4 slots
ProcessorXilinx Zynq-7000 XC7Z020; dual-core ARM Cortex-A9
Processor clock667 MHz
DRAM512 MB
Nonvolatile memory1; formatted capacity may be lower GB
Input voltage9 to 30 VDC
Maximum power input18 with four C Series modules; 14 without modules W
Operating temperature-40 to 70; mounting-related derating may apply °C
Ingress protectionIP40
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control and monitoring platform

cRIO-9065

4-slot controller

I/O

Accepts C Series modules.

Check module-specific support and software-version compatibility before configuring a system.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9065 Product PageProduct Page · ni.com
Open →
NI cRIO-9065 SpecificationsSpecifications PDF · download.ni.com
Open →
NI cRIO-9065 Getting Started GuideGetting Started Guide PDF · download.ni.com
Open →
cRIO-9065 Product CertificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which software versions are listed in the cRIO-9065 getting started guide?

The guide lists LabVIEW 2014 SP1, LabVIEW Real-Time Module 2014 SP1, and NI-RIO Device Drivers 14.5 as minimum versions. FPGA programming also requires LabVIEW FPGA Module 2014 SP1 or later. These historical minimums do not establish compatibility with every subsequent release.

What is the difference between the listed cRIO-9065 part numbers?

NI lists 783832-01 without conformal coating and 783832-02 with conformal coating. The supplied catalog record does not identify which variant applies.

What external power does the cRIO-9065 require?

It requires a 9 to 30 VDC external supply. Maximum power input is 18 W with four C Series modules.
