National Instruments · CompactRIO

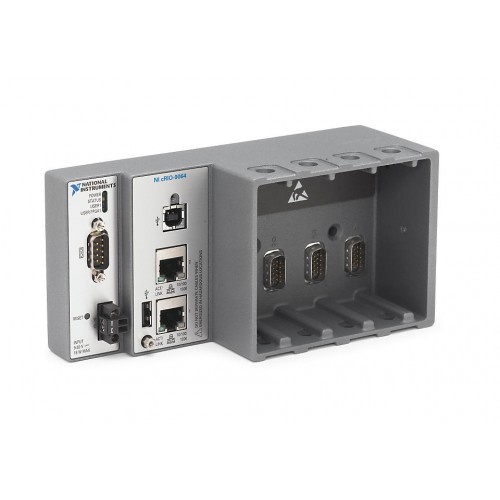

cRIO-9064

The NI cRIO-9064 is a fanless, 4-slot CompactRIO controller for embedded control and monitoring. It combines a dual-core processor, NI Linux Real-Time, and a Zynq-7020 FPGA.

ManufacturerNational Instruments

ModelcRIO-9064

Part Number783831-01

Product TypeEmbedded real-time controller with integrated 4-slot chassis

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9064

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

I/O slots4

Processor667 MHz dual-core ARM Cortex-A9

Memory512 MB DRAM; 1 GB nonvolatile storage

FPGAXilinx Zynq-7020

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cRIO-9064 integrates real-time processing and reconfigurable FPGA logic with a chassis for C Series modules. Module selection determines the system's measurement and control I/O.

Fanless embedded design.
Two RJ-45 Gigabit Ethernet ports.
One USB host, one USB device, and one RS-232 port.

Verified specifications

Technical data

Verified product specifications.

Processor frequency	667 MHz
Processor cores	2
DRAM	512 MB
Nonvolatile memory	1 GB
Operating system	NI Linux Real-Time (32-bit)
Supply voltage	9 to 30 VDC
Maximum power input with four C Series modules	18 W
Operating temperature	-20 to 55 °C
Unloaded dimensions	178.1 × 87.3 × 64.3 mm
Unloaded weight	692 g

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9064

4-slot integrated controller

Compatibility

Designed for C Series modules; verify support for each selected module and software configuration.

Check module and software support for the intended configuration before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9064 SpecificationsSpecifications PDF · download.ni.com

Open →

NI cRIO-9064 Product PageProduct Page · ni.com

Open →

cRIO-9064 Dimensional DrawingsDrawings And CAD Resources · ni.com

Open →

Mechanical integration: cRIO-9064 drawings and CAD modelsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is LabVIEW FPGA required?

It is required to program the user-accessible FPGA, but not for Scan Interface mode.

What software requirements does the original specification list?

LabVIEW and LabVIEW Real-Time Module 2014 SP1 or later, plus NI-RIO 14.5 or later. These are historical minimums, not confirmation of support in every subsequent release.
