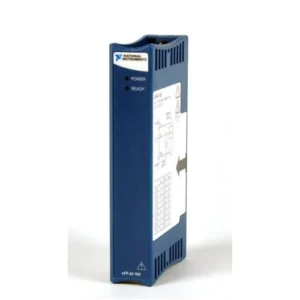

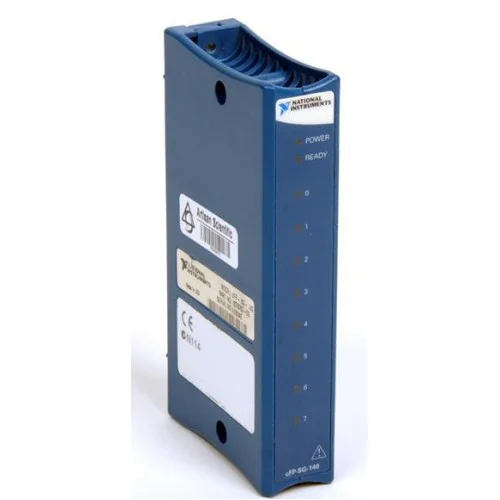

National Instruments CFP-SG-140 Strain gauge input module
1 image: Click to enlarge
National Instruments · Compact FieldPoint

CFP-SG-140

The NI CFP-SG-140 is an eight-channel strain gauge input module for Compact FieldPoint. NI identifies it as a full- and half-bridge measurement module with a maximum nominal input range of ±60 mV/V.

ManufacturerNational Instruments
ModelCFP-SG-140
Part Number777318-140
Product TypeStrain gauge input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-SG-140

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompact FieldPoint
Input channels8
ADC resolution16-bit
Sensor excitation2.5, 5 or 10 V
