National Instruments · Compact FieldPoint

CFP-RTD-124

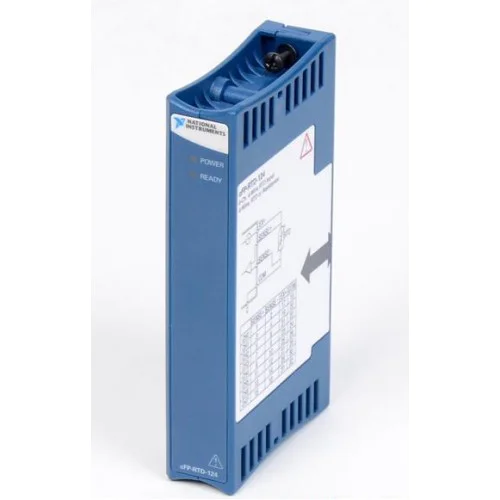

The CFP-RTD-124 is an eight-channel Compact FieldPoint module for RTD temperature and resistance measurements.

ManufacturerNational Instruments
ModelCFP-RTD-124
Product TypeRTD and resistance input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-RTD-124

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels8
Resistance range0–400 Ω
Resolution16 bits
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The module mounts on a cFP-BP-x backplane and receives power through it. Four-wire sensing reduces lead-resistance errors.

  • PT100 inputs.
  • Six selectable TCR linearization settings.
  • 50/60 Hz noise filtering.
Verified specifications

Technical data

Verified product specifications.

Input channels8
Resistance input range0–400 Ω
ADC resolution16 bits
Temperature input range−200 to 850 °C
Channel update interval1 s
Operating temperature−40 to 70 °C
Channel-to-channel isolationNone
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Modular I/O platform

CFP-RTD-124

RTD input module

Compatibility

Mounts on Compact FieldPoint cFP-BP-x backplanes.

Channels share a common ground; there is no channel-to-channel isolation.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Explore equipment

Compact FieldPoint

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can it measure three-wire RTDs?

NI documents three-wire wiring, but recommends the RTD-122 for its third-wire lead-resistance compensation.

Does it identify the connected RTD automatically?

No. Configure each channel for its RTD type.
