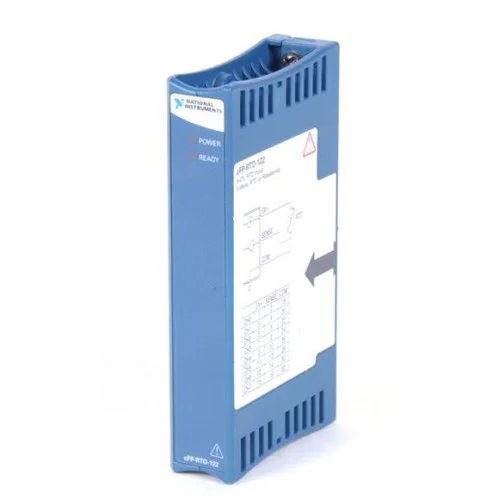

The CFP-RTD-122 is an eight-channel Compact FieldPoint module for RTD temperature and resistance measurements.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This module belongs to the Compact FieldPoint I/O ecosystem. NI identifies it as an eight-channel RTD input with a resistance input span extending to 4,000 Ω.
Verified product specifications.
| Input channels | 8 |
|---|---|
| ADC resolution | 16 bit |
| Resistance ranges | 0–400; 0–4,000 Ω |
| Temperature measurement range | −200 to 850 °C |
| Channel update interval | 1.08 s |
| Operating temperature | −40 to 70 °C |
| Channel-to-channel isolation | None |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
I/O platform
RTD input
cFP-BP-x backplane
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Yes, using either the 400 Ω or 4,000 Ω range.
Its compensated connection is three-wire. NI recommends the cFP-RTD-124 for four-wire RTDs.
