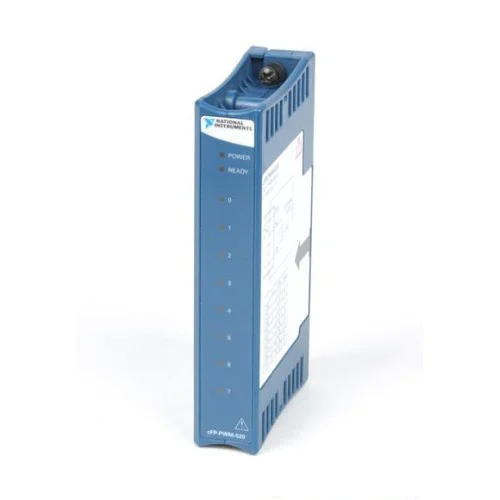

The CFP-PWM-520 provides eight sourcing PWM outputs for Compact FieldPoint systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.

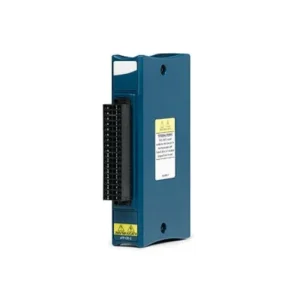

The module mounts on a Compact FieldPoint backplane; field wiring uses a connector block or other connectivity accessory.
Verified product specifications.
| Output period | 1–65,535; 1 ms increments ms |
|---|---|
| Maximum current per channel | 1 A at −40–50 °C; 0.75 A at 50–60 °C; 0.5 A at 60–70 °C A |
| Operating temperature | −40 to 70 °C |
| Channel-to-channel isolation | None |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform
PWM output

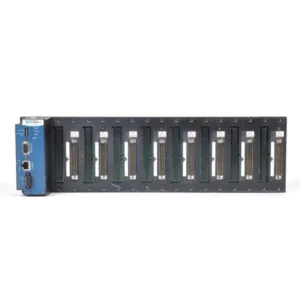

Mounts on cFP-BP-x or cFP-180x backplanes.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Write a value from 0 to 100 to the channel; configure period in MAX.
