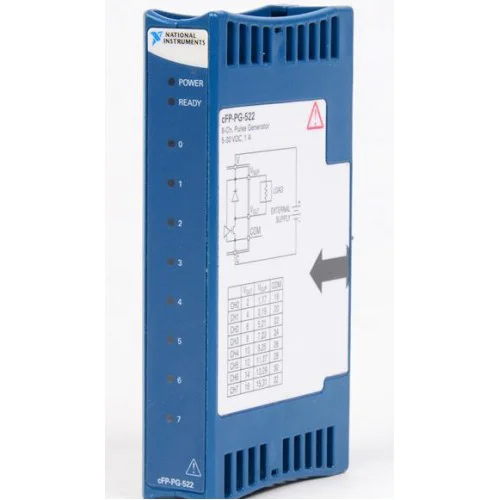

National Instruments CFP-PG-522 Pulse generator module
1 image: Click to enlarge
National Instruments · Compact FieldPoint

CFP-PG-522

The CFP-PG-522 provides eight sinking pulse outputs for Compact FieldPoint systems.

ManufacturerNational Instruments
ModelCFP-PG-522
Product TypePulse generator module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-PG-522

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels8
Output supplyExternal 5–30 VDC
ModesFinite and continuous
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

It mounts on a cFP-BP-x backplane; a cFP-CB-x connector block provides field connections.

  • 16-bit on-time and off-time settings.
  • Per-channel timing resolution selection.
  • 100% duty-cycle support.
Verified specifications

Technical data

Verified product specifications.

Output typeSinking
Maximum channel current2; aggregate thermal limits apply A
Timing resolutions1 s, 10 ms, 100 µs
Operating temperature-40 to 70 °C
Channel synchronizationNot supported
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Platform

CFP-PG-522

Pulse generation

Observe aggregate current limits and additional derating at 60–70 °C; follow the manual's fusing requirements.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-PG-522 and cFP-PG-522 Operating InstructionsOperating Instructions · download.ni.com
Open →
Installation, wiring and pulse configurationTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Are the channels individually isolated?

No. There is no channel-to-channel isolation.

Is this an arbitrary waveform generator?

NI documents pulse generation with programmable on/off timing, not arbitrary analog waveforms.
