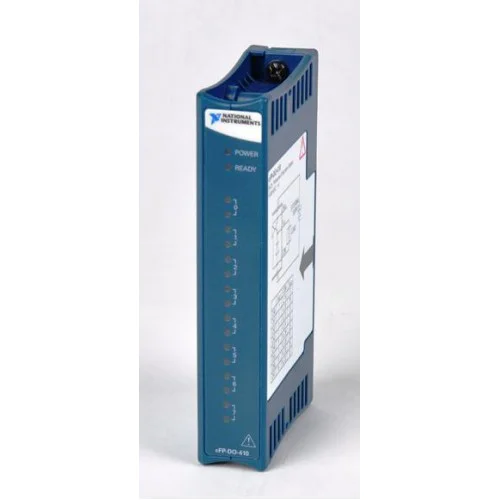

National Instruments CFP-DO-410 Sourcing digital output module
1 image: Click to enlarge
National Instruments · Compact FieldPoint

CFP-DO-410

The National Instruments CFP-DO-410, designated cFP-DO-410 by NI, is an 8-channel sourcing digital output module for Compact FieldPoint. Electronic protection and channel indicators support fault diagnosis.

ManufacturerNational Instruments
ModelCFP-DO-410
Product TypeSourcing digital output module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-DO-410

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Outputs8 sourcing channels
External supply5–30 VDC
Channel current1 A maximum; 0.5 A at 55–70 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The module adds sourcing digital outputs to a Compact FieldPoint system. NI's configuration software automatically detects and identifies it through HotPnP operation.

  • Electronic channel protection against short circuits and wiring errors.
  • Overcurrent indication with a software-monitorable alarm.
  • Automatic module detection through HotPnP.
Verified specifications

Technical data

Verified product specifications.

Output channels8 channels
Output typeSourcing
External supply range5–30 VDC
Maximum channel current1; derated to 0.5 at 55–70 °C A
Maximum total output current8; channel derating also applies A
Operating temperature-40 to 70 °C
Channel-to-channel isolationNone
Weight110 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Modular I/O platform

CFP-DO-410

Sourcing digital output module

Mounting

cFP-BP-x backplane

Observe temperature-dependent current limits and the manual's external fusing requirements.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

FP-DO-410 and cFP-DO-410 Operating InstructionsOperating Instructions · download.ni.com
Open →
NI cFP-DO-410 Product SupportProduct Support Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the CFP-DO-410 have 16 outputs?

No. NI identifies this model as an 8-channel sourcing digital output module.

Does it require external output power?

Yes. The outputs require a 5–30 VDC external supply.

Can it drive inductive loads?

NI discusses motor and relay loads and recommends external flyback protection across inductive loads.
