National Instruments · Compact FieldPoint

CFP-2200

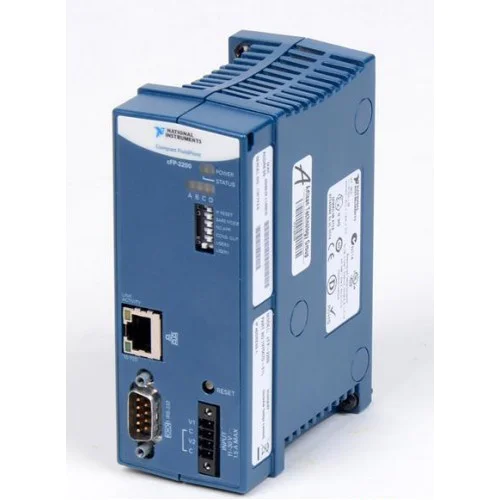

The NI CFP-2200 is a Compact FieldPoint real-time controller, identified as cFP-2200 in NI documentation.

ManufacturerNational Instruments

ModelCFP-2200

Product TypeReal-time controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-2200

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

DRAM128 MB

Nonvolatile memory128 MB

Ethernet10/100 Mbps

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The controller mounts on a cFP-BP-4 or cFP-BP-8 backplane alongside separate Compact FieldPoint I/O modules.

Auto-negotiated Ethernet communication.
One nonisolated RS-232 port.
RS-232 operation up to 115.2 kbaud.

Verified specifications

Technical data

Verified product specifications.

DRAM	128 MB
Nonvolatile memory	128 MB
Network interface	10BaseT / 100BaseTX
RS-232 ports	1 port
Maximum RS-232 baud rate	115.2 kbaud
Serial-port isolation	Nonisolated
Power input	11–30 VDC
Operating temperature	−40 to 70; follow installation guidelines °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compact FieldPoint

Platform

CFP-2200

Controller

Compatibility

Supported backplanes: cFP-BP-4 and cFP-BP-8.

Check backplane, I/O and software requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

cFP-2200/2210/2220 Operating Instructions and SpecificationsManual · docs-be.ni.com

Open →

NI-Serial 20.0 ReadmeDriver Readme · ni.com

Open →

NI troubleshooting: FP Read error 32812Technical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Compact FieldPoint

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which backplanes does it use?

NI lists the cFP-BP-4 and cFP-BP-8.

What should I check for FP Read error 32812?

NI recommends confirming that the controller is recognized in NI MAX. If static-IP detection fails, consult the manual's network-reset procedure.
