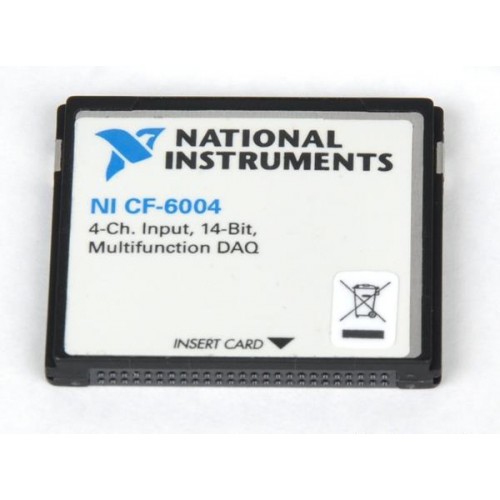

National Instruments CF-6004 Data acquisition card
1 image: Click to enlarge
National Instruments · CompactFlash

CF-6004

The National Instruments CF-6004 is a CompactFlash data acquisition card with four 14-bit analog inputs and four digital I/O lines. NI documents support for legacy Windows Mobile PDA systems through NI-DAQmx Base.

ManufacturerNational Instruments
ModelCF-6004
Part Number779174-01
Product TypeData acquisition card
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CF-6004

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
InterfaceCompactFlash
Analog inputs4 channels
Resolution14-bit
Digital I/O4 lines
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The CF-6004 brings analog acquisition and digital I/O to the CompactFlash format. NI identifies the model as a 14-bit, 200 kS/s device; its driver documentation lists four analog input channels and four digital I/O lines.

Software selection is important when integrating this card into an existing system. NI-DAQmx Base 2.2 explicitly lists the CF-6004 under Windows Mobile device support with the LabVIEW 8.2.1 PDA Module.

  • CompactFlash interface for legacy mobile data acquisition hardware.
  • Four analog input channels with 14-bit resolution.
  • Four digital input/output lines.
Verified specifications

Technical data

Verified product specifications.

Host interfaceCompactFlash
Analog input channels4 channels
Analog input resolution14 bits
Sampling rate listed in NI driver readme200 kS/s
Digital I/O lines4 lines
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactFlash

Hardware interface

CF-6004

Analog input and digital I/O acquisition card

Documented software environment

NI-DAQmx Base 2.2 with LabVIEW 8.2.1 PDA for Windows Mobile.

Confirm the exact host, operating system and driver combination before integration; documented legacy support does not establish compatibility with current systems.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI-DAQmx Base 2.0.1 ReadmeDriver Readme And Device Support Reference · download.ni.com
Open →
NI-DAQmx Base 2.2 ReadmeDriver Readme And Software Compatibility Reference · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog inputs does the CF-6004 provide?

NI lists four analog input channels with 14-bit resolution.

Does the CF-6004 include digital I/O?

Yes. The device has four digital I/O lines.

Which legacy software environment is documented for this card?

The NI-DAQmx Base 2.2 readme lists CF-6004 support for Windows Mobile with the LabVIEW 8.2.1 PDA Module. This is a version-specific support statement, not confirmation of compatibility with other software versions.
