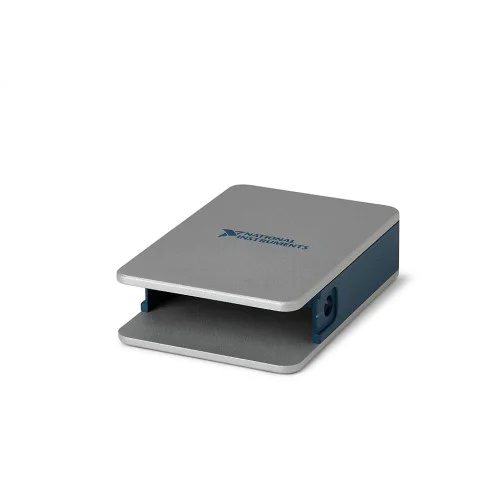

NI (National Instruments) cDAQ-9171 1-Slot, USB CompactDAQ Chassis
1 image: Click to enlarge
NI (National Instruments) · USB 2.0

cDAQ-9171

The NI cDAQ-9171 is a bus-powered, 1-slot USB 2.0 CompactDAQ chassis for small, portable sensor measurement systems. It accepts a C Series I/O module to provide the required measurement interface.

ManufacturerNI (National Instruments)
ModelcDAQ-9171
Part Number781425-01
Product Type1-Slot, USB CompactDAQ Chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cDAQ-9171

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Slot Count1
Bus ConnectionUSB 2.0
Operating Temperature Range-20 °C to 55 °C
Onboard TriggerNo
Synchronization EnabledNo
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cDAQ-9171 is a CompactDAQ chassis rather than a standalone I/O module. Its single C Series slot and bus-powered USB connection provide a compact foundation for portable sensor and electrical measurement systems.

The chassis manages timing and data transfer between the installed C Series I/O module and an external host. Analog I/O, digital I/O and counter/timer measurement capabilities depend on the selected module.

  • Single slot for a C Series I/O module.
  • USB 2.0 host connection with bus-powered operation.
  • Supports analog I/O, digital I/O and counter/timer measurements through the selected C Series module.
  • Four 32-bit general-purpose counters/timers are accessible through an installed hardware-timed digital C Series module for quadrature encoders, PWM, event counting, pulse train generation and period or frequency measurement.
  • Specified operating temperature range of -20 °C to 55 °C.
Verified specifications

Technical data

Verified product specifications.

Slot Count1
Bus ConnectionUSB 2.0
Operating Temperature Range-20 °C to 55 °C
Onboard TriggerNo
Synchronization EnabledNo
Conformal CoatedNo
NI part numbers781425-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connection

cDAQ-9171

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
cDAQ-9174View product →
Related model
cDAQ-9178View product →

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the cDAQ-9171 use USB or Ethernet?

It uses a USB 2.0 host connection and is bus-powered.

What measurements can the cDAQ-9171 support?

With an appropriate C Series I/O module, it can support analog I/O, digital I/O or counter/timer measurements. Counter access requires an installed hardware-timed digital C Series module.

Does it include onboard triggering or synchronization?

NI lists onboard trigger and synchronization enabled as No for this model.
