National Instruments CB-68LPR Unshielded screw terminal connector block

1 image: Click to enlarge

National Instruments · NI DAQ

CB-68LPR

Name: CB-68LPR
Brand: National Instruments

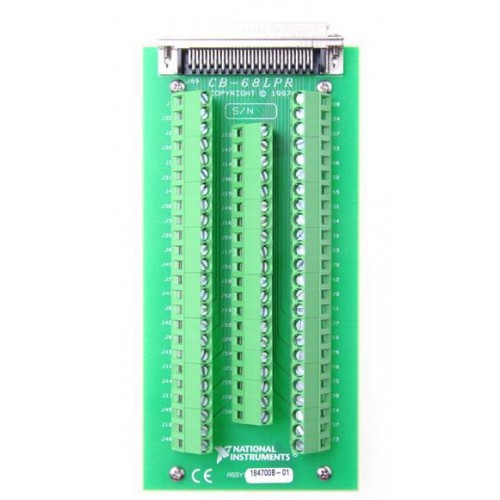

The NI CB-68LPR provides 68 screw terminals for field-signal connections to compatible NI DAQ devices. Its right-angle cable connector and standoff mounting support bench and custom-panel layouts.

ManufacturerNational Instruments

ModelCB-68LPR

Part Number777145-02

Product TypeUnshielded screw terminal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CB-68LPR

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Terminations68 screw terminals

Connector orientationRight-angle

ShieldingUnshielded

Part number777145-02

Field connections68 screw terminals

Cable interface68-pin male SCSI, right-angle mounted
