National Instruments CB-68LP Unshielded screw terminal connector block

1 image: Click to enlarge

National Instruments · NI DAQ

CB-68LP

Name: CB-68LP
Brand: National Instruments

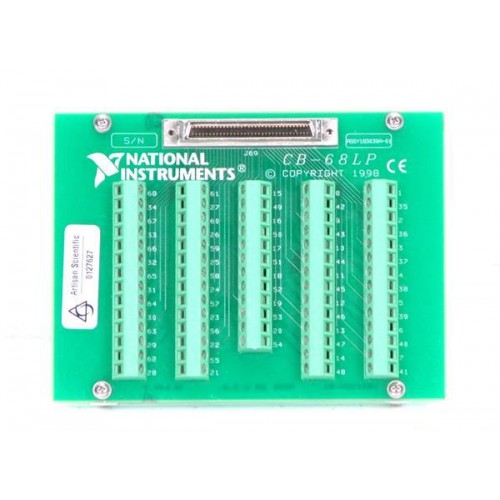

The National Instruments CB-68LP is an unshielded connector block providing 68 screw terminals for field I/O connections to compatible NI DAQ devices. It uses a vertically mounted 68-pin male SCSI connector.

ManufacturerNational Instruments

ModelCB-68LP

Part Number777145-01

Product TypeUnshielded screw terminal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CB-68LP

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Field connections68 screw terminals

Cable interface68-pin male SCSI, vertical mount

ConstructionUnshielded

MountingStandoff feet; custom-panel mounting

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The CB-68LP provides screw-terminal access to field signals through a compatible 68-pin DAQ cable. Its standoff feet support desktop positioning or installation in a custom panel.

Select the cable for the exact DAQ model and use that device's documentation for signal assignments. NI requires installation inside a suitable enclosure before use.

Screw-terminal connections for 68 field I/O signals.
Vertical 68-pin male SCSI cable connector.
Standoff feet for desktop positioning or custom-panel installation.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	777145-01
Screw terminals	68
I/O connector	One 68-pin male SCSI connector, vertically mounted
Dimensions	143.5 × 107.4 × 30.0 mm
Weight	155 g
Wire gauge	12–30 AWG
Terminal tightening torque	0.5 N·m
Maximum permitted connected voltages	30 Vrms / 42 Vpk / 60 VDC
Operating temperature	0 to 70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

Compatible NI 68-pin DAQ device and device-specific cable

Host measurement interface

CB-68LP

Field-wiring terminal block

Connector orientation

CB-68LP uses a vertical connector; CB-68LPR uses a right-angle connector.

Install in a suitable enclosure. Where the DAQ device requires shielding, use a shielded enclosure with properly shielded I/O ports and a shielded cable.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI CB-68LP Product PageProduct Page · ni.com

Open →

NI CB-68LP/CB-68LPR User GuideUser Guide With Specifications And Mounting Drawings · docs-be.ni.com

Open →

NI 67xx Analog Output Cable and Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the difference between CB-68LP and CB-68LPR?

The CB-68LP has a vertically mounted connector; the CB-68LPR has a right-angle connector. Their NI part numbers are 777145-01 and 777145-02 respectively.

Is the CB-68LP shielded?

No. It is an unshielded I/O connector block.

Can it be used for mains measurements?

NI prohibits Measurement Category II, III and IV use. Connected voltages must not exceed 30 Vrms, 42 Vpk or 60 VDC; also observe the connected DAQ device's limits.
