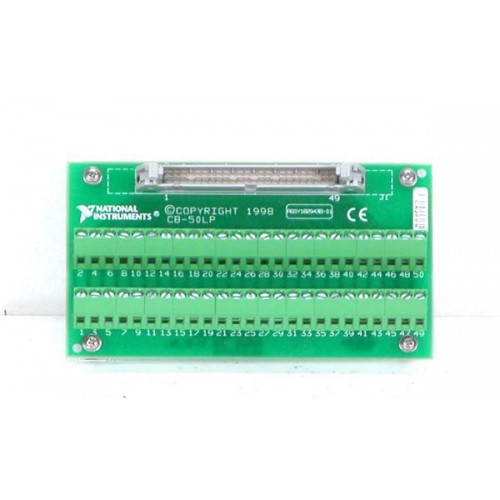

The NI CB-50LP provides screw-terminal access to I/O signals from compatible 50-pin NI DAQ devices.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
A single 50-pin header connects the block to a compatible cable. Standoffs support desktop use or installation on a custom panel.
Verified product specifications.
| Manufacturer part number | 777101-01 |
|---|---|
| Screw terminals | 50 terminals |
| Cable connection | 50-pin male IDC |
| Shielding | Unshielded |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Data acquisition ecosystem
Signal termination accessory
NI lists the CB-50LP with the R1005050 cable for its Group 2 100-pin digital I/O models, including 6509, 6511, 6512, 6513, 6514, 6515, 6527, 6528, and 6529. Consult the guide for device-specific details and limitations.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies it as an unshielded I/O connector block.
Yes, for device combinations listed in NI's guide, the R1005050 cable converts a 100-pin connection to two 50-pin connectors for CB-50LP connection. Verify the exact device entry before selecting the cable.
