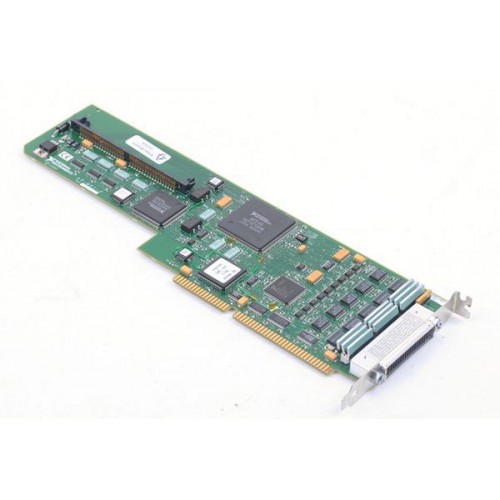

The National Instruments AT-MXI-2 is an external MXI-2 controller board for VXI/VME systems. NI documents it as the computer-side interface in the VXI/VME-AT4000 interface kit.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The AT-MXI-2 provides an external controller connection to VXI/VME mainframes through MXI-2. NI's multiple-mainframe configuration guide identifies it as an MXIbus system controller used with VXI-MXI-2 or VME-MXI-2 mainframe interfaces.
Integration requires attention to host resources and the NI-VXI software environment. NI provides Windows 95 installation instructions covering I/O space, memory, interrupt, and DMA allocation, plus separate notes explaining software changes specific to the AT-MXI-2.
Verified product specifications.
| Controller function | External MXIbus system controller |
|---|---|
| Required contiguous I/O address space | 16 bytes |
| Minimum memory address space | 32 KB |
| Selectable DMA channels | 1, 3, 5, 6, 7 |
| Selectable IRQ levels | 3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
External controller link for VXI/VME mainframes
External MXIbus system controller board
VXI-MXI-2 for VXI mainframes; VME-MXI-2 for VME mainframes in the documented configuration.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It is an external MXI controller board. In NI's documented multiple-mainframe arrangement, it serves as the MXIbus system controller.
NI documents configurations using VXI-MXI-2 interfaces in VXI mainframes and VME-MXI-2 interfaces in VME mainframes. Follow the guide's slot and logical-address requirements.
NI documents general compatibility with applications following its NI-VXI programming guidelines, but identifies exceptions involving low-level access. Applications using VXIpeek() or VXIpoke() may require recompilation, and directly manipulated context bits may need changes.
