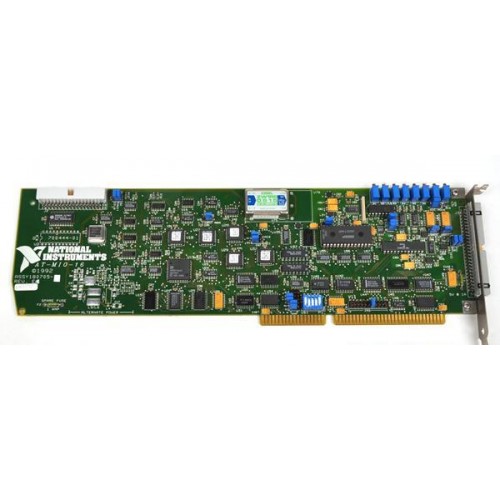

National Instruments AT-MIO-16H-9 Multifunction data acquisition board

1 image: Click to enlarge

National Instruments · PC/AT

AT-MIO-16H-9

Name: AT-MIO-16H-9
Brand: National Instruments

The AT-MIO-16H-9 combines analog, digital, and timing I/O for PC/AT computers.

ManufacturerNational Instruments

ModelAT-MIO-16H-9

Product TypeMultifunction data acquisition board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: AT-MIO-16H-9

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs16 single-ended or 8 differential

ADC resolution12-bit

Acquisition rateUp to 100 kS/s

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The H variant provides programmable gains for high-level signals. Installation requires configuring board resources and analog I/O settings.

Two 12-bit analog outputs.
Eight TTL-compatible digital I/O lines.
Three 16-bit counter/timer channels.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	16 single-ended or 8 differential
ADC resolution	12 bit
Maximum acquisition rate	100 kS/s
ADC conversion time	9 µs
Programmable input gains	1, 2, 4, 8

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PC/AT

Host platform

AT-MIO-16H-9

Multifunction I/O

Compatibility

IBM PC AT and compatible computers.

Check host resources and jumper settings against the manual before installation.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

AT-MIO-16 User Manual, February 1995User Manual · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What does the H designation indicate?

High-level signals, with gains of 1, 2, 4, and 8.

What does the -9 designation indicate?

A 9 µs ADC conversion time.
