Embedded vs. Stand-Alone PXI Controllers for Automated Test Systems
Published by: Sohoprolab Editorial Team | Date: July 8, 2025
Introduction
Choosing between an embedded PXI controller and a stand-alone PXI controller is critical when designing modular test systems. These controllers serve as the brain of the system, managing communication with PXI modules for precise measurement and control tasks. In this article, we break down the differences to help engineers select the best controller for their test environment.
What Is an Embedded PXI Controller?

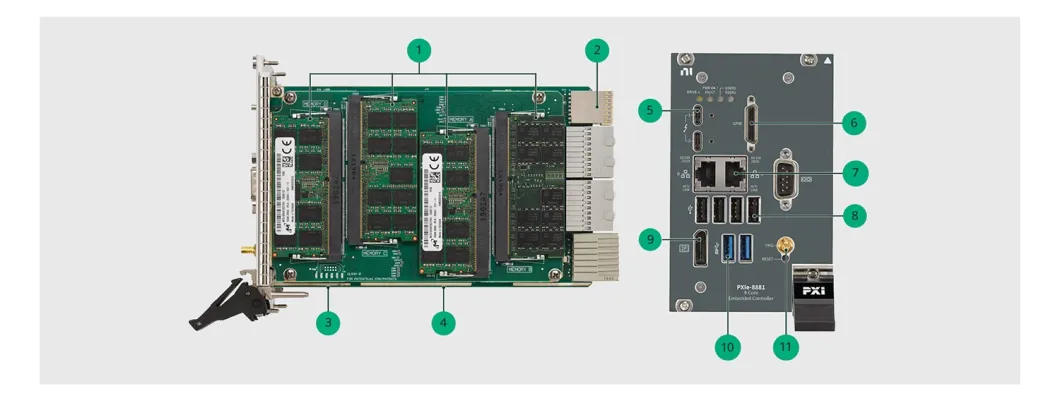

An embedded PXI controller is a dedicated CPU that plugs directly into a PXI or PXIe chassis. It includes processor, RAM, storage, and all necessary interfaces like USB, LAN, and video. Ideal for autonomous modular test systems, embedded controllers like the NI PXIe-8880 offer high bandwidth and real-time performance.
What Is a Stand-Alone PXI Controller?
A stand-alone PXI controller connects to a PXI chassis from a remote PC using PCIe expansion cards and cables. Common in distributed or high-performance setups, this approach allows for separation of control and instrumentation — reducing noise and allowing remote diagnostics.
Key Differences
| Feature | Embedded PXI Controller | Stand-Alone PXI Controller |
|---|---|---|
| Installation | Internal to PXI chassis | External PC required |
| Latency | Low, direct access | Higher, cable interface |
| Maintainability | Compact, harder to access | Easy access to PC hardware |
| Scalability | Limited to one chassis | Supports multi-chassis systems |
When to Use Each Type
- Use Embedded PXI: for portable, ruggedized, or space-constrained test systems.
- Use Stand-Alone PXI: for high-performance computing, multi-chassis setups, or remote diagnostics.
Frequently Asked Questions
- What’s the bandwidth difference between embedded and stand-alone PXI?
- Embedded PXI controllers typically provide higher sustained bandwidth within the chassis, while stand-alone systems rely on PCIe cable throughput.
- Can I convert an embedded PXI system into stand-alone?
- Not directly. The architectures are different. However, modular upgrades are possible using hybrid slots and remote interfaces.
- Which controller is better for RF testing?
- Embedded controllers are often preferred for RF applications due to lower latency and better integration with instruments like the NI PXIe-5668R spectrum analyzer.
Conclusion
Both embedded and stand-alone PXI controllers have their place in automated test systems. Your choice should reflect your needs for flexibility, performance, and system complexity. For a full range of PXI and PXIe solutions, explore our equipment catalog or contact our engineers today.
