National Instruments · VXI

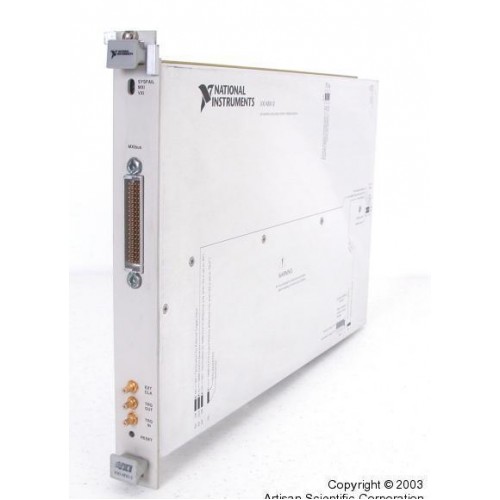

VXI-MXI-2

The National Instruments VXI-MXI-2 is a VXIbus mainframe extender for connecting VXI mainframes through MXI-2. NI documents configurations using external MXI-2 controllers or an embedded VXI controller to extend a system across additional mainframes.

ManufacturerNational Instruments

ModelVXI-MXI-2

Product TypeVXIbus mainframe extender

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: VXI-MXI-2

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformVXIbus mainframe extension

InterconnectMXI-2

Slot configurationAutomatic Slot 0 detection by default

TerminationAutomatic MXIbus termination at the end of the cable chain

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The VXI-MXI-2 provides the mainframe-side interface in a MXI-2 system. NI's configuration guide describes connecting an external PCI-MXI-2 or AT-MXI-2 controller to multiple mainframe extenders, as well as expanding an embedded-controller VXI system to additional mainframes.

Installation depends on the system topology. NI documents Slot 0 installation for externally controlled mainframes and non-Slot 0 installation alongside an embedded controller. Logical addresses, cable orientation, and bus-timeout settings must be coordinated for the selected configuration.

Extends VXIbus access between mainframes through an MXI-2 interconnect.
Automatically detects Slot 0 placement in its default configuration.
Automatically terminates the MXIbus cable when positioned at the end of the chain.
Provides DIP switches for configuring the VXI logical address.

Verified specifications

Technical data

Verified product specifications.

Interconnect generation	MXI-2 (MXIbus Version 2)
Slot 0 detection	Automatic by default
MXIbus termination	Automatic when last in the cable chain
Logical address configuration	DIP switches

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

MXI-2

Mainframe interconnect

VXI-MXI-2

VXI mainframe extender

External-controller topology

NI documents PCI-MXI-2 and AT-MXI-2 controllers connected to VXI-MXI-2 mainframe extenders.

Follow the topology-specific NI instructions for slot placement, logical addresses, cable orientation, and bus-timeout configuration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

VXI/VMEbus Multiple Mainframe System Configurations (MXI-2)Configuration Guide · ni.com

Open →

MXI-2 multiple-mainframe cabling and logical-address configurationTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

VXI and VME

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Must the VXI-MXI-2 always be installed in Slot 0?

No. NI documents Slot 0 installation in externally controlled mainframes and non-Slot 0 installation in a mainframe with an embedded VXI controller. The module detects Slot 0 automatically by default; follow the instructions for the selected topology.

Does the VXI-MXI-2 provide automatic cable termination?

Yes. NI states that the VXI-MXI-2 automatically terminates the MXIbus cable when it is the last device in the cable chain.

How is the VXI logical address configured?

The logical address is set using DIP switches. Required addresses depend on the topology; use the corresponding configuration example in NI's multiple-mainframe guide.
