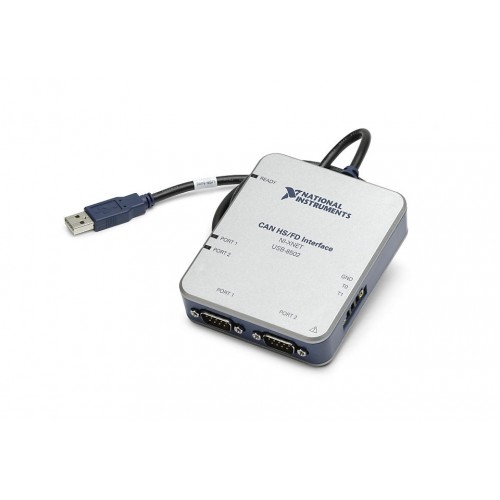

NI (National Instruments) USB-8502 1- or 2-Port, High-Speed/FD, USB CAN Interface Device

1 image: Click to enlarge

NI (National Instruments) · USB 2.0

USB-8502

The NI USB-8502 is a USB 2.0 CAN interface supporting high-speed CAN and CAN Flexible Data Rate (CAN FD) with the NI-XNET driver. The model is offered in 1- or 2-port variants; confirm the specific configuration before system integration.

ManufacturerNI (National Instruments)

ModelUSB-8502

Part Number784662-01 · 784661-01

Product Type1- or 2-Port, High-Speed/FD, USB CAN Interface Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-8502

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectorUSB 2.0

CAN Physical LayerFlexible Data-Rate, High-Speed

Bus ConnectionUSB 2.0

Operating Temperature Range0 °C to 55 °C

Maximum Baud Rate1 MB/s

ReconfigurableNo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-8502 connects a host computer to high-speed CAN and CAN FD networks through USB 2.0. It uses the NI-XNET driver and draws power from the USB bus, without requiring an external power supply.

Designed for CAN frame and signal handling, the interface supports applications such as bus monitoring and automation control. Its device-driven DMA engine transfers CAN frames and signals between the interface and the user program without CPU interrupts.

Supports high-speed CAN and CAN Flexible Data Rate.
USB 2.0 host connection with USB bus power.
Works with the NI-XNET driver for CAN frame and signal applications.
Device-driven DMA engine transfers CAN frames and signals without CPU interrupts.
Enclosed design with an operating temperature range of 0 °C to 55 °C.

Verified specifications

Technical data

Verified product specifications.

Bus Connector	USB 2.0
CAN Physical Layer	Flexible Data-Rate, High-Speed
Reconfigurable	No
Bus Connection	USB 2.0
Operating Temperature Range	0 °C to 55 °C
Maximum Baud Rate	1 MB/s
Conformal Coated	No
Enclosed	Yes
NI part numbers	784662-01, 784661-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connector

USB-8502

This product

Compatibility

Uses the NI-XNET driver for CAN communication; operating-system and driver-version compatibility must be checked separately.

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-8502 support CAN FD?

Yes. The USB-8502 supports high-speed CAN and CAN Flexible Data Rate (CAN FD).

How many CAN ports does the USB-8502 have?

The USB-8502 model is offered in 1- and 2-port variants. The existing model-level data lists both variants, so the port count of this specific catalog item requires confirmation.

Does the USB-8502 require external power?

No. It is powered through the USB bus and does not require an external power supply.

Which driver family does the USB-8502 use?

The USB-8502 uses the NI-XNET driver. Confirm the driver version and operating-system support for your intended host computer.

Which NI part numbers are associated with the USB-8502?

The existing verified model data lists 784662-01 and 784661-01. These are model-level references; the exact part number and port configuration of this catalog item require confirmation.
