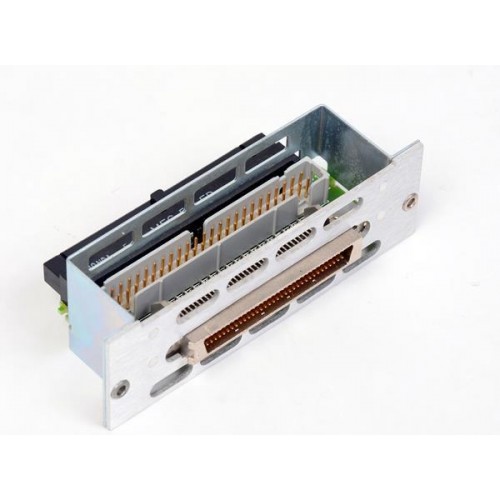

The National Instruments SCXI-1349 is a shielded cable adapter for connecting compatible DAQ devices to SCXI systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The adapter mounts behind the selected SCXI module and provides the connection point for a shielded DAQ cable.
NI documents SCXI-to-PC and SCXI-to-PXI/PXIe configurations using the SCXI-1349 with 68-pin NI 62xx or 63xx DAQ cards that have analog inputs. Cable selection depends on the DAQ card; the communicating module slot must also be identified in NI MAX.
Verified product specifications.
| Front-panel connector | 68-pin male |
|---|---|
| Rear module connector | 50-pin female, bracket-mounted |
| PCB breakout connector | 50-pin male |
| Maximum working voltage, signal plus common-mode | 30 Vrms, 42 Vpk, 60 VDC |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Relative humidity | 10 to 90, noncondensing % |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Signal-conditioning platform
DAQ cable adapter
Use a 68-pin cable selected for the specific DAQ card.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
The guide specifies 68-pin E Series devices except 61XXE devices, and excludes SCXI switch modules.
NI documents configurations using 68-pin 62xx M Series and 63xx X Series cards with analog inputs. Select the cable for the exact DAQ card and review NI's breakout mapping, particularly the PFI 15/P2.7 grounding restriction.
NI specifies that the breakout connector is intended only for use with the SCXI-1180 feedthrough panel. Consult the DAQ-family-specific pin translation before wiring.
