National Instruments · SCXI

SCXI-1346

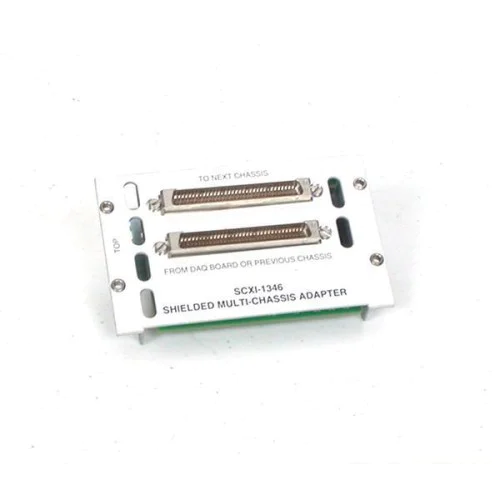

The National Instruments SCXI-1346 is a shielded multichassis cable adapter for daisy-chained SCXI systems. It connects an appropriate SCXI module to the DAQ device or preceding chassis and provides an onward connection to the next chassis.

ManufacturerNational Instruments

ModelSCXI-1346

Part Number776574-46

Product TypeShielded multichassis cable adapter

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1346

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FunctionSCXI multichassis daisy-chain adapter

DAQ/interchassis interface68-pin upstream and downstream connections

Module connection50-pin female connector

Documented cableSH6868 in NI's multichassis example
