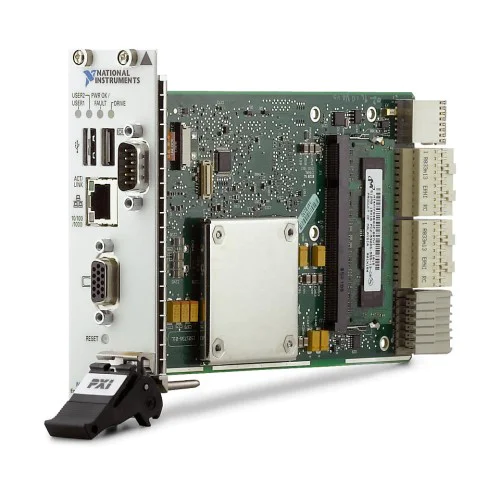

The NI PXIe-8100 is an Intel Atom-based embedded controller for PXI Express and CompactPCI Express real-time instrumentation systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
Designed for deterministic modular instrumentation and real-time data acquisition, the PXIe-8100 provides embedded processing within the measurement chassis.
Installation uses the chassis system controller slot. NI's installation guide illustrates the controller in a PXIe-1062Q and covers seating, securing, peripheral connections, and boot troubleshooting.
Verified product specifications.
| Processor | Intel Atom D410 |
|---|---|
| Processor frequency | 1.66 GHz |
| Processor cores | 1 |
| Controller operating system | LabVIEW Real-Time (Phar Lap) |
| Maximum controller bandwidth | 1 GB/s |
| Nonvolatile storage capacity | 512 MB |
| Removable drive | No |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
System platform
Embedded system controller
System controller slot (Slot 1)
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies this model as using a 1.66 GHz Intel Atom D410 processor.
Install it in the PXI Express chassis system controller slot, identified as Slot 1. Follow both the controller installation guide and the chassis manual.
NI lists 2010 RT as the earliest supported version with the PXI(e)-8100 Target CD. The table lists no supported earliest version without that Target CD.
