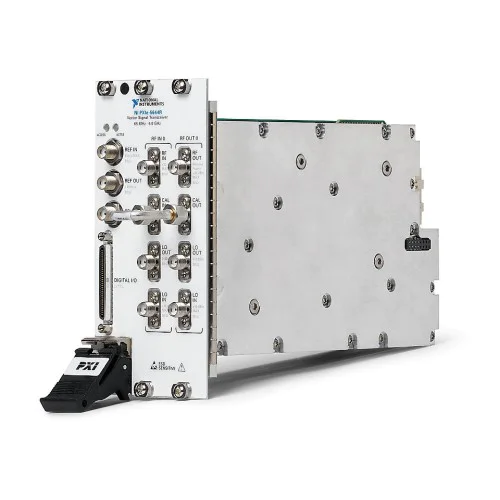

National Instruments PXIe-5644 RF vector signal transceiver

1 image: Click to enlarge

National Instruments · PXI Express

PXIe-5644

The NI PXIe-5644 integrates vector signal generation, vector signal analysis, and FPGA-based real-time processing. It provides 65 MHz to 6 GHz RF coverage with 80 MHz instantaneous bandwidth.

ManufacturerNational Instruments

ModelPXIe-5644

Product TypeRF vector signal transceiver

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-5644

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

RF frequency range65 MHz to 6 GHz

Instantaneous bandwidth80 MHz for generation and analysis

Form factorThree-slot PXI Express module

FPGAXilinx Virtex-6 LX195T

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Combining generation and analysis in one instrument, the PXIe-5644 supports software-defined RF measurement systems with onboard FPGA processing and control.

NI's installation documentation uses the PXIe-5644R designation. Integration requires a PXI Express chassis, a suitable embedded controller or PC-based MXI controller system, and supported instrument software.

Integrated vector signal generator and vector signal analyzer.
User-programmable FPGA connected to RF baseband data and digital I/O.
24 bidirectional LVTTL digital I/O lines configurable in six four-line ports.
PCI Express Gen 1 x4 backplane connection supports DMA and peer-to-peer streaming.

Verified specifications

Technical data

Verified product specifications.

RF generator frequency range	65 MHz to 6 GHz
RF analyzer frequency range	65 MHz to 6 GHz
RF generator instantaneous bandwidth	80 MHz
RF analyzer instantaneous bandwidth	80 MHz
Generator tuning time, typical	0.95 ms
Analyzer tuning time, typical	1.2 ms
Module width	3 slots
Operating ambient temperature	0 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Chassis and backplane platform

PXIe-5644

RF vector signal transceiver

Slot allocation

Requires three adjacent chassis slots; the left two must be PXI Express compatible.

Verify chassis slot layout and software-version requirements before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXIe-5644 Official Product PageProduct Page · ni.com

Open →

NI PXIe-5644R Getting Started GuideGetting Started Guide · download.ni.com

Open →

NI Vector Signal Transceiver Hardware ArchitectureTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many chassis slots does the module require?

It occupies three adjacent slots. The left two slots must be PXI Express compatible.

Can its FPGA be customized?

Yes. NI documents a user-programmable Virtex-6 FPGA and programming through the LabVIEW FPGA Module.

Why do the linked manuals refer to PXIe-5644R?

NI's PXIe-5644 product page identifies its product description as PXIe-5644R VST, and the associated getting-started guide uses that designation. Confirm the module label and part number when matching hardware to documentation.
