NI (National Instruments) PXIe-4145 PXIe, 4-Channel, ±6 V, 500 mA Precision PXI Source Measure Unit
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-4145

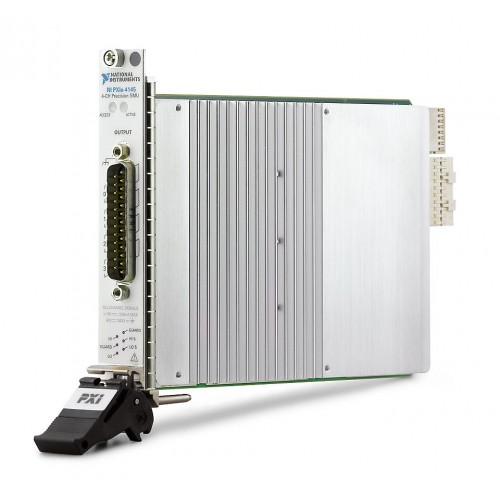

The NI PXIe-4145, part number 782435-01, is a four-channel precision PXI Express source measure unit with a ±6 V voltage range and ±500 mA DC current range.

ManufacturerNI (National Instruments)
ModelPXIe-4145
Part Number782435-01
Product TypePXIe, 4-Channel, ±6 V, 500 mA Precision PXI Source Measure Unit
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-4145

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Current Sensitivity15 pA
Number of SMU Channels4
Voltage Range-6 V to 6 V
SourceAdaptYes
Max DC Sink Power3 W
Max DC Source Power3 W
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-4145 is a four-channel source measure unit for high-pin-count applications in PXI systems. It provides four-quadrant operation and integrated remote 4-wire sensing on each channel.

Its high-speed sequencing engine supports synchronization between the SMUs, while its sampling capabilities support transient device and current-voltage characterization. SourceAdapt tunes the response to the connected load to improve stability and reduce transients.

  • Four SMU channels with four-quadrant operation.
  • Voltage range of -6 V to 6 V and DC current range of -500 mA to 500 mA.
  • 15 pA current sensitivity.
  • Integrated remote 4-wire sensing on each channel.
  • SourceAdapt technology for load-response tuning.
  • High-speed sequencing engine for synchronization between SMUs.
Verified specifications

Technical data

Verified product specifications.

Current Sensitivity15 pA
Number of SMU Channels4
Voltage Range-6 V to 6 V
SourceAdaptYes
Max DC Sink Power3 W
Max DC Source Power3 W
DC Current Range-500 mA to 500 mA
Bus ConnectorPXI Express
Supported Hardware PlatformPXI
Bus ConnectionPXI Express
NI part numbers782435-01
