PXIe-2748

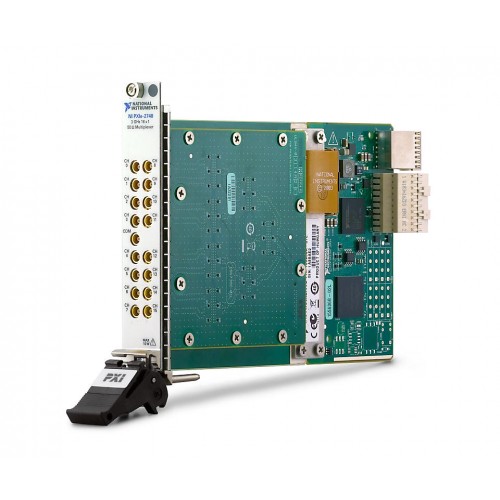

The NI PXIe-2748, part number 780587-48, is a 16x1 RF multiplexer switch module with a PXI Express interface. It provides 3 GHz switch bandwidth and 50 Ω characteristic impedance.

ManufacturerNI (National Instruments)

ModelPXIe-2748

Part Number780587-48

Product TypePXIe, 3 GHz, 16x1 PXI RF Multiplexer Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2748

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionPXI Express

Maximum Switching Voltage AC30 V

Relay TypeElectromechanical

Switch Bandwidth3 GHz

Characteristic Impedence50 Ohm

Max Insertion Loss3 dB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2748 is an RF multiplexer for the PXI ecosystem, using a PXI Express bus connection. Its 16 channels are arranged in one bank with a 16x1 switching configuration, supporting RF switching up to 3 GHz.

The module uses electromechanical relays and has a 50 Ω characteristic impedance. Its listed maximum insertion loss is 3 dB. Consult the NI specifications and user manual for operating conditions and routing details before integrating it into a test system.

16 channels arranged in one bank, with 16 rows and one column.
3 GHz switch bandwidth with 50 Ω characteristic impedance.
Electromechanical relay switching.
Maximum switching voltage of 30 V AC and 30 V DC.
1-wire operation with row access and no termination.
Listed scan rate of 102 cycles/s.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	PXI Express
Maximum Switching Voltage AC	30 V
Relay Type	Electromechanical
Switch Bandwidth	3 GHz
Characteristic Impedence	50 Ohm
Max Insertion Loss	3 dB
Number of Channels	16
Number of Banks	1
Termination	No
Supported Hardware Platform	PXI
Maximum Carry Current AC	0.5 A
Maximum Switching Current DC	0.5 A
Maximum Switching Voltage DC	30 V
Mode (n-wire)	1-wire
Number of Columns	1
Number of Rows	16
Row Access	Yes
Scan Rate	102 cycles/s
NI part numbers	780587-48
