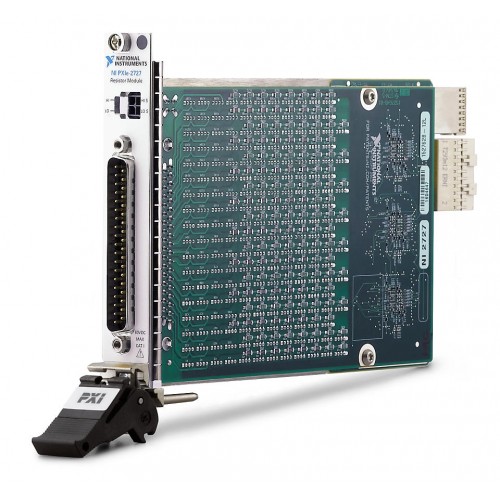

NI (National Instruments) PXIe-2727 16-Bit, 9-Channel PXI Programmable Resistor Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXIe-2727

The NI PXIe-2727 is a 16-bit, 9-channel PXI Express programmable resistor module with a maximum resistance of 16 kOhm and 0.25 Ohm resolution.

ManufacturerNI (National Instruments)
ModelPXIe-2727
Part Number781986-27
Product Type16-Bit, 9-Channel PXI Programmable Resistor Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2727

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Number of Resistor Channels9
Bus ConnectionPXI Express
Maximum Resistance16 kOhm
Resistance Resolution0.25 Ohm
Supported Hardware PlatformPXI
Maximum Carry Current AC0.3 A
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXIe-2727 replicates resistance-based inputs and outputs, including potentiometers, resistance temperature detectors, voltage dividers, and bridge elements. It programmatically controls a series of relays to vary resistance across each channel of an I/O connector.

The module supports simulation of environmental conditions in hardware-in-the-loop validation. Its software accepts inputs in units of temperature or resistance and configures the resistance across each channel.

  • Nine resistor channels with 16-bit programmable resistance control.
  • Maximum resistance of 16 kOhm with 0.25 Ohm resistance resolution.
  • PXI Express bus connection within the PXI platform.
  • Reed-relay implementation with row access.
  • Specified maximum switching voltages of 30 V AC and 60 V DC.
Verified specifications

Technical data

Verified product specifications.

Number of Resistor Channels9
Bus ConnectionPXI Express
Maximum Resistance16 kOhm
Resistance Resolution0.25 Ohm
Supported Hardware PlatformPXI
Maximum Carry Current AC0.3 A
Maximum Switching Current DC0.3 A
Maximum Switching Voltage AC30 V
Maximum Switching Voltage DC60 V
Number of Channels9
Relay TypeReed
Row AccessYes
NI part numbers781986-27
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXIe-2727

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for the PXIe-2727?

The listed NI part number is 781986-27.

How many resistor channels does the PXIe-2727 provide?

The PXIe-2727 provides nine resistor channels with 16-bit programmable resistance control.

What are the maximum resistance and resistance resolution?

The specified maximum resistance is 16 kOhm, and the resistance resolution is 0.25 Ohm.

Does the PXIe-2727 use PXI Express?

Yes. Its bus connection is PXI Express, and its supported hardware platform is listed as PXI. Confirm the specific chassis, controller, and software requirements before integration.
