NI (National Instruments) · PXI

PXIe-2575

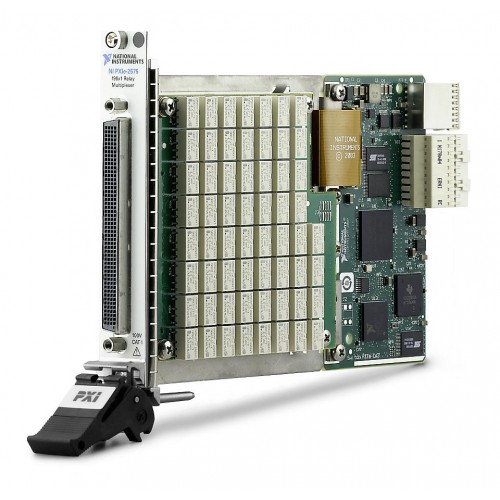

The NI PXIe-2575 is a 196-channel, 1-wire PXI multiplexer switch module with PXI Express connectivity and electromechanical relays. It supports 1-wire and 2-wire operation and a scan rate of 140 cycles/s.

ManufacturerNI (National Instruments)

ModelPXIe-2575

Part Number780587-75

Product Type196‐Channel, 1-Wire PXI Multiplexer Switch Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-2575

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Scan Rate140 cycles/s

Mode (n-wire)1-wire, 2-wire

Bus ConnectorPXI Express

Maximum Switching Current DC1 A

Maximum Switching Voltage DC100 V

Relay TypeElectromechanical

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXIe-2575 is a high-density multiplexer switch module in the NI PXI platform, using a PXI Express bus connection. The cataloged NI part number is 780587-75.

Electromechanical relays provide signal routing in 1-wire or 2-wire configurations. The 196-channel designation refers to its 1-wire configuration; the supplied specifications also list 95- and 98-channel configurations. Consult the NI user manual for topology and wiring details.

196-channel, 1-wire multiplexer with support for 2-wire operation.
PXI Express bus connectivity within the PXI platform.
Electromechanical relay switching with a 140 cycles/s scan rate.
Maximum DC switching ratings of 100 V and 1 A; operating limits must be checked together in the specifications.
20 MHz switch bandwidth.
Single-bank arrangement with 196 crosspoints.

Verified specifications

Technical data

Verified product specifications.

Scan Rate	140 cycles/s
Mode (n-wire)	1-wire, 2-wire
Bus Connector	PXI Express
Maximum Switching Current DC	1 A
Maximum Switching Voltage DC	100 V
Relay Type	Electromechanical
Switch Bandwidth	20 MHz
Number of Channels	95, 98, 196
Number of Banks	1
Supported Hardware Platform	PXI
Bus Connection	PXI Express
Crosspoints	196
Maximum Carry Current AC	1 A
Maximum Switching Voltage AC	100 V
Number of Columns	1
Number of Rows	196
Row Access	Yes
Termination	Yes
NI part numbers	780587-75
