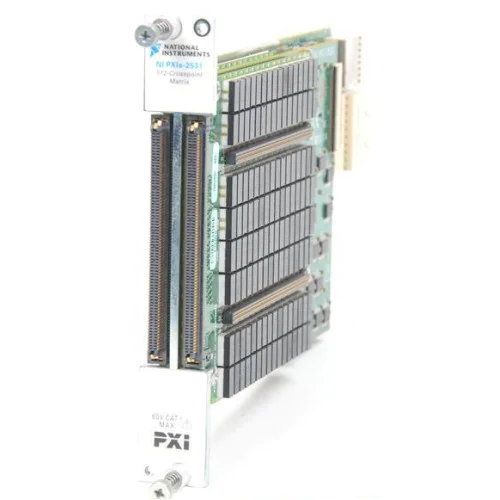

National Instruments PXIE-2531 Matrix switch module
1 image: Click to enlarge
National Instruments · PXI Express

PXIE-2531

The NI PXIe-2531 is a 512-crosspoint, 1-wire matrix switch module for high-channel-count automated test systems. Reed relays support switching speeds up to 2,000 cycles/s.

ManufacturerNational Instruments
ModelPXIE-2531
Part Number780587-31
Product TypeMatrix switch module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIE-2531

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Matrix capacity512 crosspoints
Bus interfacePXI Express
Switching speedUp to 2,000 cycles/s
Relay technologyReed relays
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for low-current, high-speed signal routing, the PXIe-2531 combines a high-density matrix with hardware-triggered operation. Onboard relay counting supports monitoring of relay usage.

Terminal-block selection determines the supported matrix arrangement. NI specifies four standard 1-wire topologies for this module.

  • 512-crosspoint matrix for high-channel-count routing.
  • Onboard relay counting for relay monitoring.
  • Hardware triggers support deterministic operation.
Verified specifications

Technical data

Verified product specifications.

Crosspoints512
Standard topologies1-wire: 4 × 128, 8 × 64, dual 4 × 64, dual 8 × 32
Maximum switching voltage60 VDC / 30 VACrms, channel-to-channel and channel-to-ground; CAT I
Maximum switching or carry current0.5 per channel A
Maximum switching power10 per channel W
Relay operate time0.25 ms
Module I/O connectorsTwo 150-position Samtec ERM8-series connectors
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Module bus interface

PXIe-2531

Matrix switching module

Connectivity

Select a terminal block matched to the required topology.

Observe voltage, current and 10 W switching-power limits together; not for direct mains connections.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXIe-2531 Product PageProduct Page · ni.com
Open →
NI PXI/PXIe-2531 SpecificationsSpecifications PDF · download.ni.com
Open →
NI Matrix Switch Cable and Accessory Compatibility GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which terminal blocks configure the standard matrices?

TB-2648: 4 × 128; TB-2649: dual 4 × 64; TB-2650: 8 × 64; TB-2651: dual 8 × 32. All are 1-wire configurations.

Does the module track relay usage?

Yes. The PXIe-2531 provides onboard relay counting for monitoring.
