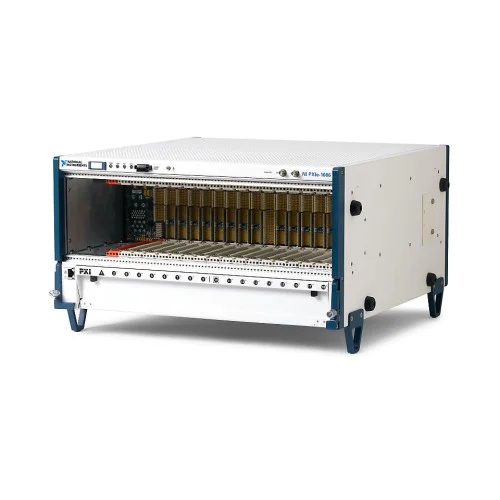

National Instruments PXIe-1086 18-slot PXI Express chassis
1 image: Click to enlarge
National Instruments · PXI Express

PXIe-1086

The NI PXIe-1086 is an 18-slot PXI Express chassis with up to 12 GB/s system bandwidth. Redundant, hot-swappable AC power supplies and cooling fans support systems with demanding uptime requirements.

ManufacturerNational Instruments
ModelPXIe-1086
Part Number781720-01
Product Type18-slot PXI Express chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXIe-1086

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Slot configuration18 total; 16 hybrid and 1 PXI Express
Maximum system bandwidth12 GB/s
Slot cooling capacity38 W
System timing locationSlot 10
Serviceable redundancyHot-swappable power supplies and front-accessible fans
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for test, measurement, and control systems, the PXIe-1086 combines modular instrumentation slots with redundant power and cooling. Chassis status LEDs report faults, while internal monitoring tracks supply voltages, intake temperature, and fan operation.

The Gen 2 backplane uses two segments: slots 2–9 and slots 10–18. Its 12 GB/s system bandwidth rating describes the controller-to-backplane connection, not a dedicated 12 GB/s connection to each module.

  • Redundant AC power supplies support hot-swappable replacement.
  • Redundant cooling fans are accessible from the front.
  • Slot 10 provides PXIe_DSTAR connections for triggering, synchronization, and clocking.
  • Gen 2 x8 peripheral links provide up to 4 GB/s nominal single-direction bandwidth.
Verified specifications

Technical data

Verified product specifications.

Total slot count18 slots
Hybrid slots16 slots
PXI Express slots1 slot
Maximum system bandwidth12 GB/s
Slot cooling capacity38 W
Power supply typeAC
Rated input voltage100–240 VAC
Rated input frequency50/60 Hz
System timing slotSlot 10
Operating temperature0–50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI Express

Modular instrumentation platform

PXIe-1086

Chassis

Backplane segmentation

Two segments covering slots 2–9 and 10–18

Check controller link capability, module slot requirements, and system power and cooling budgets before configuration.
