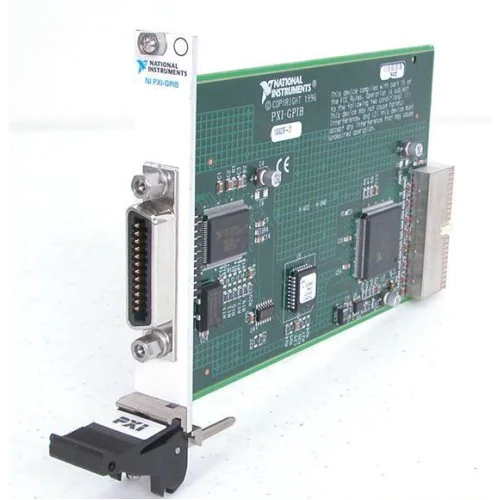

The NI PXI-GPIB is an IEEE 488 controller module for integrating external GPIB instruments into PXI systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-GPIB adds IEEE 488 instrument control to a PXI system, providing a connection to non-PXI instruments equipped with GPIB interfaces. NI identifies NI-488.2 as the driver software for this module.
NI documents installation in PXI or CompactPCI peripheral slots and recommends a bus-master-capable slot to use the onboard DMA controller.
Verified product specifications.
| Three-wire GPIB transfer rate | Up to 1536 kbytes/s |
|---|---|
| HS488 transfer rate | Up to 7885 kbytes/s |
| GPIB connector | IEEE 488, 24-pin |
| PXI interface | 32-bit, universal signaling |
| Dimensions | 16.0 × 10.0 cm |
| Module height | 3U |
| Operating ambient temperature | 0 to 55 °C |
| +5 V current | 80 typical; 165 maximum mA |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host instrumentation platform
Interface to external IEEE 488 instruments
NI-488.2 driver
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It connects external IEEE 488 GPIB instruments to a PXI system for instrument control.
NI specifies up to 1536 kbytes/s with three-wire GPIB and up to 7885 kbytes/s with HS488.
Yes. NI recommends a bus-master-capable peripheral slot for the onboard DMA controller. Its legacy installation guide requires disabling DMA when using a non-bus-master slot.
