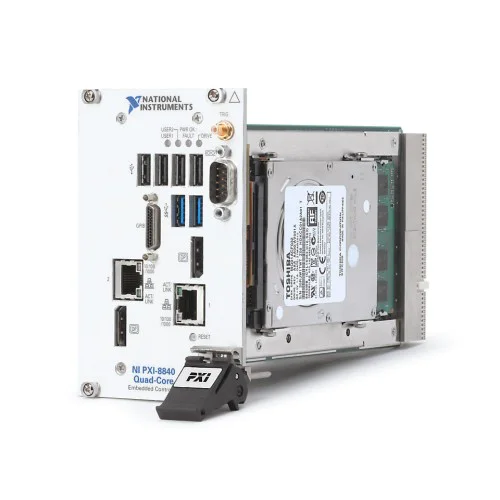

National Instruments PXI-8840 Embedded PXI controller
1 image: Click to enlarge
National Instruments · PXI

PXI-8840

The NI PXI-8840 is an embedded system controller for PXI modular instrumentation and data acquisition systems. Processor and operating-system configurations vary; the catalog-associated part number 784193-33 identifies a quad-core LabVIEW Real-Time configuration rather than the Core i5 Windows configuration described in the legacy record.

ManufacturerNational Instruments
ModelPXI-8840
Part Number784193-33
Product TypeEmbedded PXI controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8840

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformPXI embedded system controller
Maximum controller bandwidth132 MB/s
EthernetTwo Gigabit Ethernet ports
USBTwo USB 3.0 and four USB 2.0 ports
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Installed in a PXI chassis, the PXI-8840 provides embedded computing and peripheral connectivity for a modular measurement system. NI identifies processor-intensive instrumentation and data acquisition as intended uses.

The model name covers multiple hardware and operating-system variants. Confirm the controller label before selecting configuration-specific software or documentation: NI lists 784193-33 as a Core i7 quad-core controller with LabVIEW Real-Time (Phar Lap).

  • Embedded computing for PXI instrumentation systems.
  • Dual Gigabit Ethernet connections for networked equipment and host communication.
  • Six USB connections spanning USB 3.0 and USB 2.0.
  • Integrated hard drive and serial-port connectivity.
Verified specifications

Technical data

Verified product specifications.

Controller interfacePXI
Maximum controller bandwidth132 MB/s
Ethernet ports2 × 10/100/1000BASE-TX
USB 3.0 ports2 ports
USB 2.0 ports4 ports
Removable hard driveNo
Operating temperature5 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-8840

Embedded system controller

System role

Provides the embedded computer for a PXI chassis.

Confirm the exact part number, processor variant, and operating system before choosing firmware, drivers, or configuration-specific manuals.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-8840 Product Page and Configuration TableProduct Page · ni.com
Open →
NI PXI-8840 User Manual — Core i5 VersionUser Manual · download.ni.com
Open →
NI PXI-8840 Quad-Core Getting Started GuideGetting Started Guide · download.ni.com
Open →
PXI-8840 Quad-Core Firmware and Additional Drivers — verify variant before useTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the PXI-8840 a measurement module or a controller?

It is an embedded PXI system controller that provides computing and peripheral connectivity for a modular instrumentation system.

Which configuration does part number 784193-33 identify?

NI identifies 784193-33 as a PXI-8840 quad-core Core i7 configuration with LabVIEW Real-Time (Phar Lap). This conflicts with the catalog's legacy Core i5 and Windows 7 description, so the actual unit configuration requires confirmation.

What peripheral connections are provided?

NI lists two Gigabit Ethernet ports, two USB 3.0 ports, four USB 2.0 ports, and a serial port. Configuration-dependent expansion features should be checked against the exact controller variant.
