National Instruments PXI-8212 Combination GPIB and Ethernet interface module

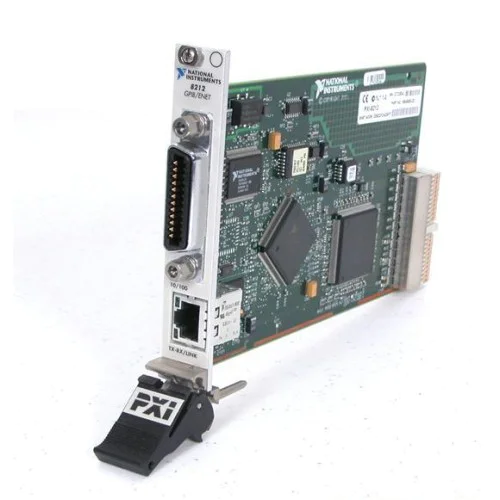

1 image: Click to enlarge
National Instruments · PXI

PXI-8212

The National Instruments PXI-8212 combines a GPIB controller and a 10/100 Mb/s Ethernet interface in a single PXI slot. It provides instrument control and network connectivity without requiring separate modules.

ManufacturerNational Instruments
ModelPXI-8212
Product TypeCombination GPIB and Ethernet interface module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8212

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Module formatSingle-slot PXI
FunctionsGPIB controller and Fast Ethernet interface
Ethernet rates10 or 100 Mb/s
External connectorsIEEE 488 24-pin GPIB and RJ-45 Ethernet
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-8212 brings GPIB instrument control and Ethernet networking together on one PXI module. Its integrated design conserves chassis slots when both interfaces are needed in an instrumentation system.

NI identifies the GPIB controller as the TNT4882 ASIC and describes the operating system as recognizing the Ethernet and GPIB functions separately. Installation documentation covers Ethernet driver setup, network cabling, indicators, and troubleshooting.

  • Combines Ethernet and GPIB functionality in one PXI slot.
  • Supports 10 Mb/s and 100 Mb/s Ethernet operation.
  • Uses the NI TNT4882 ASIC for GPIB control.
  • Supports the high-speed HS488 GPIB protocol.
  • Provides Ethernet activity/link and speed LEDs.
Verified specifications

Technical data

Verified product specifications.

Slot occupancy1 PXI slot
Ethernet data rate modes10 or 100 Mb/s
GPIB connectorIEEE 488 standard 24-pin
Ethernet connectorRJ-45
Dimensions16.0 × 9.9 cm
Power requirements1.7 W at +3.3 VDC or 2 W at +5 VDC
Operating ambient temperature0 to 55 °C
Operating relative humidity10 to 90, noncondensing %
Storage temperature-20 to 70 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-8212

Combined Ethernet and GPIB interface

Instrument connection

IEEE 488 24-pin GPIB

Check Ethernet driver support separately from NI-488.2 GPIB support for the intended operating system.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.
