National Instruments · PXI

PXI-8175

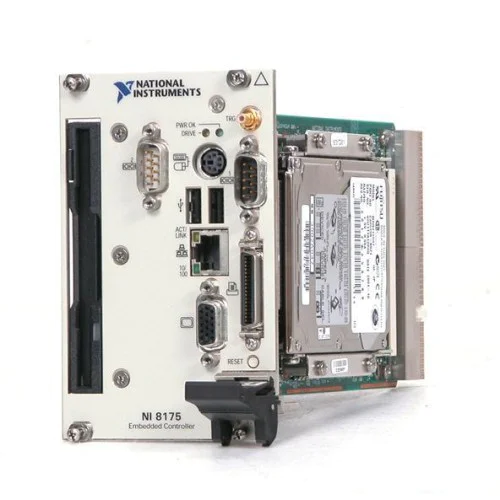

The National Instruments PXI-8175 is an NI 8171 Series embedded PXI controller. NI documents direct integration with PXI-1020 and PXI-1025 chassis, including their display, IDE CD-ROM, and PS/2 peripheral interfaces.

ManufacturerNational Instruments

ModelPXI-8175

Product TypeEmbedded PXI controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-8175

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Controller familyNI 8171 Series

Installation positionPXI system controller slot, Slot 1

External display connectionVGA

Documented chassis integrationPXI-1020 and PXI-1025

Software planningPXI Platform Services removed support beginning with version 3.2.2

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-8175 belongs to the NI 8171 Series of embedded controllers. The series installation guide places the controller in the PXI chassis system controller slot and documents front-panel VGA and PS/2 connections.

For PXI-1020 and PXI-1025 systems, NI specifically identifies the PXI-8175 as providing direct interfaces to the chassis LCD, IDE CD-ROM drive, and PS/2 mouse and keyboard. LCD operation requires the appropriate chassis selection in BIOS.

Software selection requires attention to legacy support: NI lists the PXI-8175 among controllers whose support was removed in PXI Platform Services 3.2.2. Confirm the installed operating system and required driver versions before planning a software change.

Embedded controller installation in the PXI system controller slot.
VGA connection for an external monitor.
PS/2 keyboard and mouse connection through a Y-splitter adapter; adapter inclusion with this catalog unit is not established.
Direct chassis peripheral interfaces for PXI-1020 and PXI-1025 systems.

Verified specifications

Technical data

Verified product specifications.

Product family	NI 8171 Series
Installation slot	System controller slot, Slot 1
External monitor interface	VGA
Keyboard and mouse interface	PS/2; Y-splitter required to connect both through the front-panel PS/2 connector
Direct chassis peripheral interfaces	PXI-1020 and PXI-1025 LCD display, IDE CD-ROM, and PS/2 mouse/keyboard signals

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Chassis platform

PXI-8175

NI 8171 Series embedded controller

Chassis integration

NI documents direct PXI-1020 and PXI-1025 peripheral interfaces.

Confirm chassis configuration and legacy driver requirements; do not assume a recent PXI Platform Services release supports this controller.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 8171 Series Installation GuideInstallation Guide · download.ni.com

Open →

PXI Platform Services 19.5 Readme — Historical Hardware Support ChangesSoftware Readme · ni.com

Open →

NI 8171 Series Installation, Chassis LCD Configuration, and Boot TroubleshootingTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Where is the PXI-8175 installed in a PXI chassis?

The NI 8171 Series installation guide specifies the system controller slot, Slot 1. Follow the chassis-specific instructions and keep chassis power off during installation.

Does NI document PXI-1020 and PXI-1025 integration?

Yes. NI explicitly states that the NI 8175 interfaces directly with these chassis, providing LCD display, IDE CD-ROM, and PS/2 mouse and keyboard signals. The LCD chassis setting must be selected in BIOS.

Can I assume recent PXI Platform Services versions support this controller?

No. NI records removal of PXI-8175 support in PXI Platform Services 3.2.2. Establish the appropriate legacy software configuration before changing drivers.
