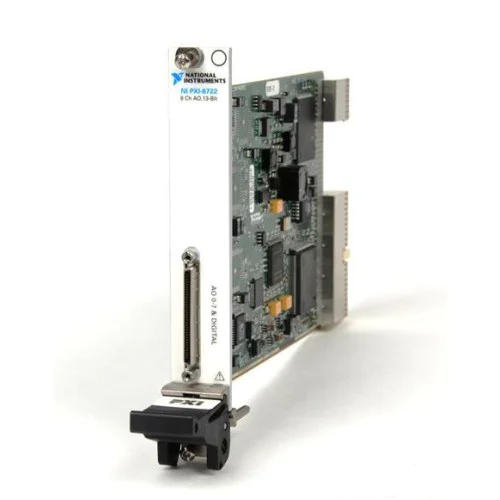

NI (National Instruments) PXI-6722 13-Bit, 8-Channel, 800 kS/s PXI Analog Output Module
1 image: Click to enlarge
NI (National Instruments) · PXI Hybrid

PXI-6722

The NI PXI-6722 is an eight-channel analog output module with 13-bit resolution and a maximum analog update rate of 800 kS/s. It provides outputs from -10 V to 10 V for static voltage output and waveform generation.

ManufacturerNI (National Instruments)
ModelPXI-6722
Part Number778999-01
Product Type13-Bit, 8-Channel, 800 kS/s PXI Analog Output Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6722

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog Output Channels8
Analog Output Resolution13 bits
Maximum Analog Update Rate800 kS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Hybrid
Bus ConnectionPXI Hybrid
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6722 provides eight analog output channels with 13-bit resolution and a -10 V to 10 V output range. It supports static outputs and waveform generation, including common waveforms such as sine, square and sawtooth signals as well as complex waveforms.

The module has a PXI Hybrid bus connection and a VHDCI front connection. Alongside its analog outputs, it provides eight 5 V TTL/CMOS digital I/O lines, two 24-bit, 20 MHz counter/timers, digital triggering and external clocking capabilities.

  • Eight analog output channels with 13-bit resolution.
  • Maximum analog update rate of 800 kS/s.
  • Bipolar -10 V to 10 V output range with a maximum current drive of 5 mA.
  • Supports static voltage output and common or complex waveform generation.
  • Eight digital I/O lines and two counter/timers complement the analog outputs.
  • Digital triggering and external clocking capabilities.
Verified specifications

Technical data

Verified product specifications.

Number of Analog Output Channels8
Analog Output Resolution13 bits
Maximum Analog Update Rate800 kS/s
Analog Output Voltage Range-10 V to 10 V
Bus ConnectorPXI Hybrid
Bus ConnectionPXI Hybrid
Analog Output IsolationNone
Front Connection TypeVHDCI
Maximum Current Drive5 mA
NI part numbers778999-01
