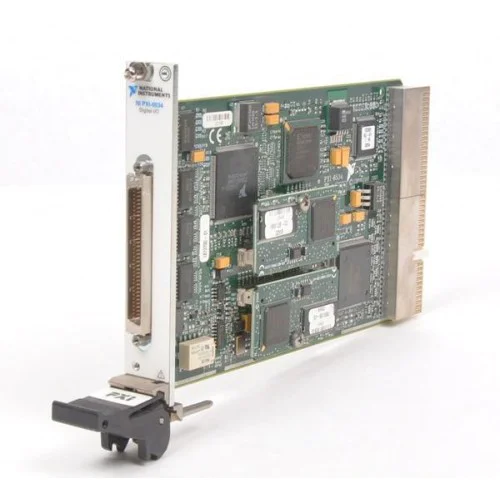

The National Instruments PXI-6534 is a PXI high-speed digital I/O module with 32 channels, 5 V TTL/CMOS signaling, handshaking and onboard memory.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-6534 belongs to NI's 6533/6534 digital I/O family. It combines parallel digital input/output and handshaking with onboard memory in a PXI module.
Verified product specifications.
| Digital I/O channels | 32 channels |
|---|---|
| Dedicated output/control lines | 4 lines |
| Dedicated input/status lines | 4 lines |
| Digital compatibility | TTL/CMOS; standard or open collector |
| Onboard memory | 64 total, comprising two 32 MB modules MB |
| Maximum internally timed sample rate | 20; specified for small transfers, defined as the FIFO size MHz |
| Change-detection resolution | 150 ns |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module platform
Digital I/O and handshaking module with onboard memory
NI documents NI-DAQmx and Traditional NI-DAQ (Legacy) programming support for the PXI-6534; release-specific operating-system support must be checked separately.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI specifies 64 MB total, implemented as two 32 MB memory modules.
The specification lists 20 MHz for small transfers and defines a small transfer as the FIFO size. This is not an unconditional sustained-transfer specification.
NI documents programming support through NI-DAQmx and Traditional NI-DAQ (Legacy). Check the specific driver release and operating system; historical support does not establish support in every later release.
