National Instruments PXI-6521 Isolated digital I/O module with mechanical relay outputs

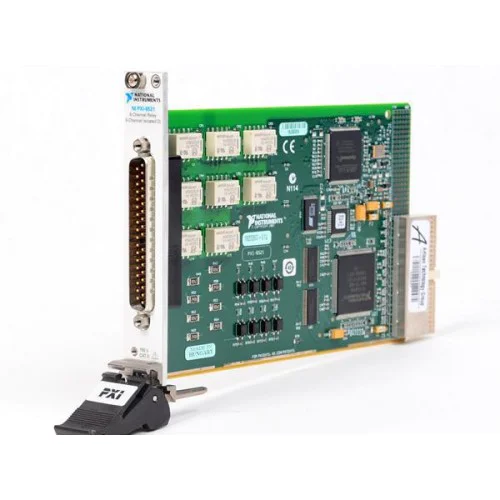

1 image: Click to enlarge
National Instruments · PXI

PXI-6521

The NI PXI-6521 is an industrial PXI digital I/O module combining eight isolated ±30 VDC inputs with eight non-latching mechanical relay outputs.

ManufacturerNational Instruments
ModelPXI-6521
Part Number779313-01
Product TypeIsolated digital I/O module with mechanical relay outputs
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6521

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Digital inputs8 bipolar, optically isolated channels
Input range−30 to +30 VDC differential
Relay outputs8: three Form C and five Form A
Signal connectionKeyed 37-pin male D-SUB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6521 brings isolated industrial digital I/O to the PXI platform. Its inputs support sinking and sourcing signals at standard industrial 24 V logic levels.

Relay contacts switch externally powered circuits rather than supplying an output voltage. Form C channels provide normally open and normally closed contacts; Form A channels provide normally open contacts.

  • Channel-isolated inputs accommodate bipolar DC signals.
  • Programmable power-up states establish initial relay settings.
  • Digital filtering and change detection support input monitoring.
  • A configurable watchdog can move outputs to user-defined states following a communication timeout while board power remains present.
Verified specifications

Technical data

Verified product specifications.

Digital channel count16: 8 inputs and 8 relay outputs channels
Input differential voltage range−30 to +30 VDC
Input channel-to-channel isolation60 continuous VDC
Input channel-to-bus isolation150 continuous V
Relay configuration3 non-latching SPDT (Form C); 5 non-latching SPST (Form A)
Maximum relay switching voltage150 VAC or 150 VDC, Category II
Maximum relay current per channel2; subject to switching-power limit, external chassis ambient up to 55 °C A
Maximum relay switching power60 W / 60 VA
Signal connector37-pin keyed male D-SUB
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6521

Industrial isolated digital I/O and relay module

Connection requirement

Use the special keyed cables and accessories specified for NI 6521 devices.

Observe voltage, current, and switching-power limits together. Follow NI's hazardous-voltage wiring and PXI filler-panel requirements.
