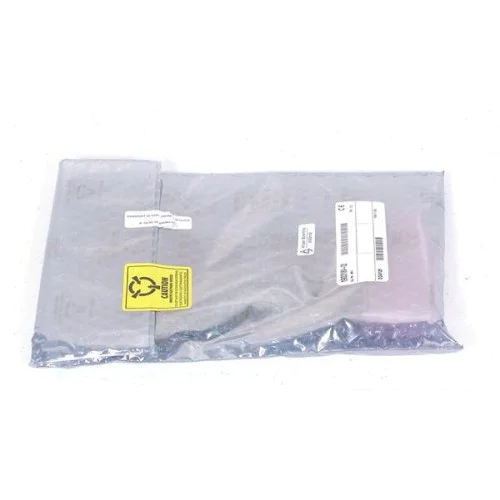

National Instruments PXI-6514 Bank-isolated industrial digital I/O module
1 image: Click to enlarge
National Instruments · PXI

PXI-6514

The NI PXI-6514 is a 64-channel industrial digital I/O module with 32 sink/source inputs and 32 sourcing outputs. Its channels are arranged in eight isolated banks.

ManufacturerNational Instruments
ModelPXI-6514
Part Number778965-01
Product TypeBank-isolated industrial digital I/O module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6514

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Digital inputs32 sink/source
Digital outputs32 sourcing
Isolation groupingEight banks of eight lines
Field connection100-pin keyed female SCSI
Output powerExternal power supply required
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-6514 combines digital sensing and sourcing outputs in a PXI module. Four eight-line input banks and four eight-line output banks provide separate groups for field wiring; lines within each bank share their ground and/or power connection.

Programmable power-up states define initial output behavior, while the watchdog can switch outputs to configured states after a computer or application fault. Software-selectable input filtering helps reject glitches and debounce switches or relays.

  • Optically isolated digital channels with bank-to-bank and bank-to-bus isolation.
  • Programmable output power-up states.
  • Watchdog timer for configured output-state handling.
  • Digital input filtering and change detection.
Verified specifications

Technical data

Verified product specifications.

Input channels32 sink/source
Output channels32 sourcing
Channels per bank8 channels
Common-mode isolation30; bank-to-bank and bank-to-bus VDC
Input logic-low voltage0 to ±4 VDC
Input logic-high voltage±11 to ±30 VDC
Maximum output switching voltage30 VDC
Default power-on output state0 (open); programmable to 0 or 1
I/O connector100-pin keyed female SCSI
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-6514

Industrial digital input/output module

Output wiring

Sourcing outputs require an external supply connected to the appropriate output-port VCC pins.

Check output-current derating against ambient temperature and active lines per port; isolation is bank-based, not individual channel-to-channel.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-6514 Official Product PageProduct Page · ni.com
Open →
NI 651x SpecificationsSpecifications PDF · docs-be.ni.com
Open →
NI 651x User ManualUser Manual PDF · docs-be.ni.com
Open →
Industrial DIO Output Signal Connections and Common Causes of DamageTechnical resource
Open →
NI 651x Output Overcurrent Protection and Revised Current LimitsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-6514 provide sinking or sourcing outputs?

Its 32 outputs source current. The 32 inputs support sink/source signals.

Does the module power its output loads from the PXI chassis?

The output ports require an external power supply connected to their VCC pins.

Is isolation provided separately for every channel?

No. Isolation is organized in eight-line banks. Lines in a bank share ground and/or power.

How does the PXI-6514 differ from the PXI-6512?

The PXI-6514 combines 32 inputs and 32 sourcing outputs. The PXI-6512 provides 64 sourcing outputs without digital inputs.
