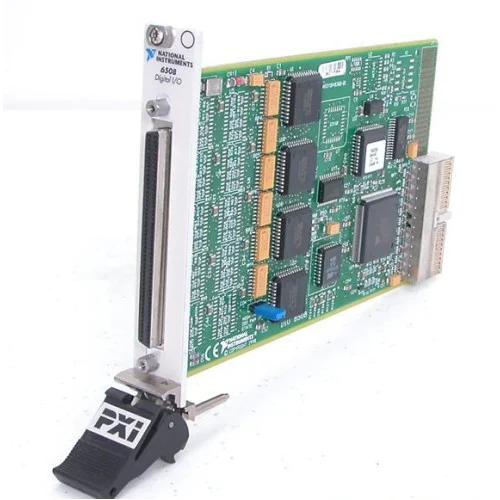

National Instruments PXI-6508 Parallel digital I/O module
1 image: Click to enlarge
National Instruments · PXI

PXI-6508

The National Instruments PXI-6508 provides 96 TTL-compatible parallel digital I/O lines for PXI and CompactPCI systems.

ManufacturerNational Instruments
ModelPXI-6508
Product TypeParallel digital I/O module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6508

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Digital I/O96 lines
Logic compatibilityTTL
Signal connector100-pin SCSI 0.050 D-Type
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Four 82C55A programmable peripheral interfaces support unidirectional, bidirectional and handshaking operation.

NI's cable guide identifies shielded and ribbon-cable connection options. Review the connector mapping and accessory limitations before selecting field wiring.

  • 96 parallel digital I/O lines.
  • Handshaking and interrupt-request capability.
  • Jumper-selectable power-up pull-up or pull-down bias.
Verified specifications

Technical data

Verified product specifications.

Digital I/O count96 lines
Power-on stateHigh-impedance inputs; jumper-selectable pull-up or pull-down
Bias resistance100 kΩ
Typical output current2.5 mA
I/O connector100-pin female 0.050-series D-Type
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI / CompactPCI

Chassis interface

PXI-6508

Digital I/O

Connection planning

NI lists SH100M-100M Flex and R1005050 cable options.

Logic outputs are not high-current load drivers; use suitable external circuitry.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PCI-DIO-96/PXI-6508/PCI-6503 User ManualUser Manual With Specifications · download.ni.com
Open →
NI 650x/651x/652x Cable and Accessory Compatibility GuideCompatibility Guide · ni.com
Open →
R1005050 and NB5 Ribbon Differences and Connector PinoutsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How are the power-up levels selected?

Jumper W1 selects pull-up or pull-down bias through 100 kΩ resistors.

What is required to access all lines with R1005050?

Connect both 50-pin branches to connector blocks. NI identifies the CB-100 kit as an R1005050 cable with two CB-50 blocks.
