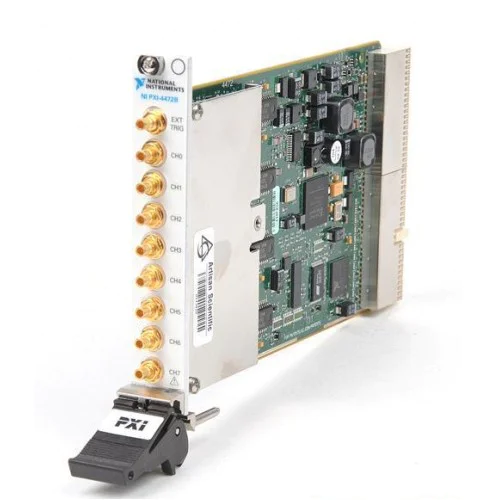

National Instruments PXI-4472B Sound and vibration acquisition module
1 image: Click to enlarge
National Instruments · PXI

PXI-4472B

The National Instruments PXI-4472B is an eight-input PXI sound and vibration module optimized for vibration and low-frequency AC measurements. It combines simultaneous acquisition with integrated IEPE conditioning for accelerometers and microphones.

ManufacturerNational Instruments
ModelPXI-4472B
Product TypeSound and vibration acquisition module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4472B

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs8 simultaneously sampled channels
Resolution24-bit
Maximum sample rate102.4 kS/s per channel
AC cutoff0.5 Hz
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Within the NI 447x family, the PXI-4472B addresses low-frequency vibration acquisition. Its 0.5 Hz AC cutoff distinguishes it from the PXI-4472, whose AC cutoff is 3.4 Hz.

Built-in antialiasing filters adjust automatically with the sample rate. Multiple PXI-4472B modules can be synchronized for higher-channel-count measurements.

  • Integrated IEPE conditioning supports accelerometers and microphones.
  • Eight input channels digitize signals simultaneously.
  • Software-selectable AC or DC input coupling.
  • Sample-rate-tracking antialiasing filters.
Verified specifications

Technical data

Verified product specifications.

Analog input channels8, simultaneously sampled
ADC resolution24 bit
ADC typeDelta-sigma
Sample rate range1.0 to 102.4 kS/s per channel
Input configurationPseudodifferential
Input range±10 Vpk
AC −3 dB cutoff0.5 Hz
IEPE excitation0 or 4 mA, ±5%; independently software-selectable per channel
Analog input connectorsSMB male
Form factorOne 3U CompactPCI slot
Operating temperature0 to 55 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-4472B

Sound and vibration acquisition

Synchronization

PXI_STAR supports up to 14 devices per chassis.

Confirm chassis-slot suitability and driver/operating-system support before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 447x SpecificationsSpecifications · docs-be.ni.com
Open →
PXI-4472B Official Product OverviewProduct Page, Chinese · ni.com
Open →
NI-DAQmx for Linux/x86 64-bit 21.3 ReadmeTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does the PXI-4472B differ from the PXI-4472?

The PXI-4472B has a lower AC cutoff of 0.5 Hz, versus 3.4 Hz for the PXI-4472, supporting lower-frequency AC vibration measurements.

Can it acquire all eight channels simultaneously?

Yes. All eight input channels digitize simultaneously.

Does it provide conditioning for IEPE sensors?

Yes. Integrated IEPE conditioning is provided for accelerometers and microphones; check the sensor's excitation requirements before connection.
