PXI-4462

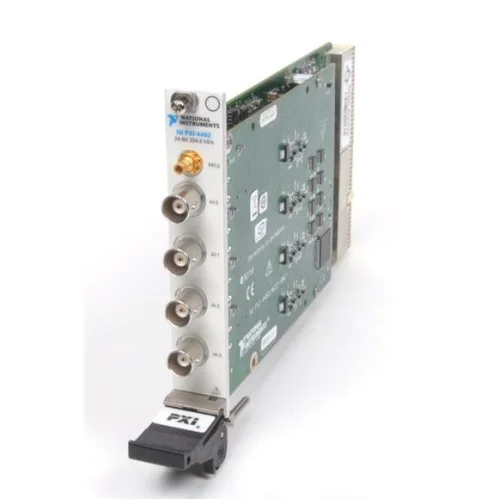

The National Instruments PXI-4462 is a four-input sound and vibration acquisition module with 24-bit resolution and sampling up to 204.8 kS/s. It provides selectable gain, AC/DC coupling and IEPE conditioning.

ManufacturerNational Instruments

ModelPXI-4462

Part Number779131-01

Product TypeSound and vibration acquisition module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4462

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Inputs4 simultaneously sampled channels

Resolution24-bit

Maximum sample rate204.8 kS/s

Input gain6 selectable settings

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Designed for frequency-domain measurements, the PXI-4462 acquires signals from microphones, accelerometers and other wide-dynamic-range transducers within a PXI measurement system.

Software-configurable AC/DC input coupling.
Integrated IEPE sensor conditioning.
Independent per-channel gain and differential or pseudodifferential input configuration.
Class I TEDS support on all module inputs.

Verified specifications

Technical data

Verified product specifications.

Simultaneous analog inputs	4 channels
ADC resolution	24 bits
Sample rate	1 to 204.8 kS/s
Full-scale input ranges	±0.316, ±1, ±3.16, ±10, ±31.6, ±42.4 Vpk
IEPE excitation	0, 4 or 10; independently selectable per channel; ±15% at 4 and 10 mA mA
Typical dynamic range	118 at 0 dB gain, 1–51.2 kS/s, 1 kHz input tone at −60 dBFS dBFS
AC-coupling cutoff	3.4 at −3 dB Hz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-4462

Four-input dynamic signal acquisition module

Compatibility

NI identifies part number 779131-01 as the PXI bus variant and 779688-01 as the PXI Hybrid variant; verify the physical module before selecting a chassis slot.

Check the exact part number and chassis slot type; NI lists distinct PXI and PXI Hybrid variants.
