PXI-4461

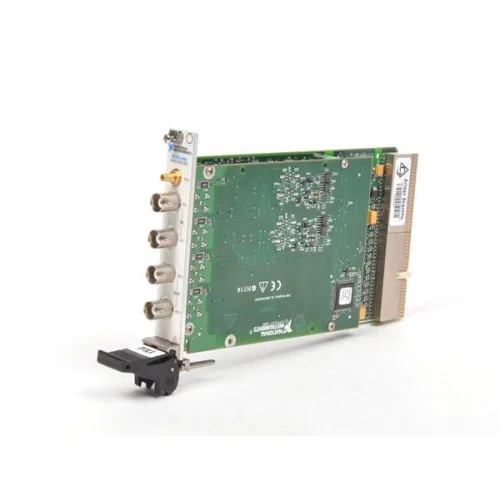

The NI PXI-4461 combines two-channel dynamic signal acquisition and two-channel generation in a PXI sound and vibration module.

ManufacturerNational Instruments

ModelPXI-4461

Product TypeSound and vibration module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4461

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs2, simultaneous

Analog outputs2, simultaneous

Maximum acquisition/update rate204.8 kS/s

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Standard PXI and hybrid-slot-compatible versions exist. Both retain PXI communication; the hybrid version does not provide PXI Express signaling.

24-bit delta-sigma ADCs and DACs.
Independently selectable AC/DC input coupling.
Software-selectable IEPE excitation.

Verified specifications

Technical data

Verified product specifications.

ADC/DAC resolution	24 bit
Input full-scale ranges	±0.316, ±1, ±3.16, ±10, ±31.6, ±42.4 Vpk
Output full-scale ranges	±0.1, ±1, ±10 Vpk
IEPE excitation settings	0, 4 or 10; ±15% for enabled settings mA
Analog I/O connectors	BNC female
Input dynamic range	118 typical at 0 dB gain, 1–51.2 kS/s, 1 kHz tone at −60 dBFS dBFS

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Chassis interface

PXI-4461

Dynamic signal acquisition and generation

Compatibility

Hybrid-slot-compatible versions fit PXI, CompactPCI and hybrid slots. Do not assume the unidentified catalog unit is this variant.

Confirm the connector variant before choosing chassis slots or planning PXI Star Trigger synchronization.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 4461/4462 SpecificationsSpecifications PDF · docs-be.ni.com

Open →

Considerations When Using the NI PXI-4461 or NI PXI-4462Official Compatibility Guidance · knowledge.ni.com

Open →

Export a Trigger Out of an NI PXI-4461/4462Technical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the PXI-4461 synchronize with PXI-4472 or PXI-4472B modules?

NI requires the standard PXI-4461 connector variant for this synchronization because it uses PXI Star Trigger. Hybrid-slot-compatible PXI-4461 modules lack that connection.

Can PFI0 export a trigger?

No. The PXI-4461 PFI line is input-only. NI describes using another suitable DAQ, DSA or timing module to export a routed trigger.
