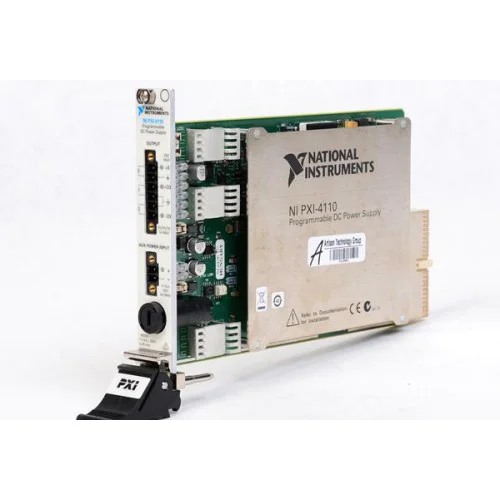

National Instruments PXI-4110 Triple-output programmable DC power supply
1 image: Click to enlarge
National Instruments · PXI

PXI-4110

The NI PXI-4110 is a three-channel, single-quadrant programmable DC power supply for PXI systems. It supports programmable voltage setpoints and current limits with voltage and current readback.

ManufacturerNational Instruments
ModelPXI-4110
Part Number779647-10 · 779647-11
Product TypeTriple-output programmable DC power supply
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-4110

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
OutputsThree DC supply channels
Voltage ranges0 to +6 V, 0 to +20 V, and 0 to -20 V
Form factor3U, single-slot PXI/cPCI module
Full-current operationAuxiliary power required for 1 A on channels 1 and 2
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-4110 provides programmable DC power for design validation and manufacturing test. Its three outputs combine a low-voltage positive rail with positive and negative 20 V rails.

The architecture combines switching regulation with linear output control. This supports programmable voltage and current control while providing voltage and current measurement functionality within the module.

  • Programmable voltage setpoints and current limits.
  • Integrated voltage and current readback.
  • Single-quadrant operation with three output channels.
  • Switching regulation combined with a linear output stage.
Verified specifications

Technical data

Verified product specifications.

Channel 0 voltage0 to +6 V
Channel 1 voltage0 to +20 V
Channel 2 voltage0 to -20 V
Channel 0 maximum current1 with internal or auxiliary power A
Channels 1 and 2 maximum current1 per channel with auxiliary power; 0.1 per channel with internal power A
Internal-power shared limitChannels 1 and 2 combined: 3 W
Current rangesChannel 0: 1 A; channels 1 and 2: 20 mA and 1 A
IsolationChannels 1 and 2: 60 VDC to earth ground, CAT I; not isolated from each other
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-4110

Programmable DC power supply

Auxiliary power option

NI identifies 779647-11 as the configuration with APS-4100 and 779647-10 as the configuration without it.

Confirm the actual part number and auxiliary-power hardware before planning full-current operation.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

PXI-4110 Product PageOfficial Product Page · ni.com
Open →
PXI-4110 SpecificationsSpecifications PDF · download.ni.com
Open →
NI PXI-4110 Programmable Power Supply ArchitectureTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Are the positive and negative 20 V channels isolated from each other?

No. Channels 1 and 2 are isolated from ground, but not from each other.

Does the model designation establish whether an APS-4100 is included?

No. NI lists separate PXI-4110 configurations with and without the APS-4100. The catalog record does not establish which configuration or accessories are present.
