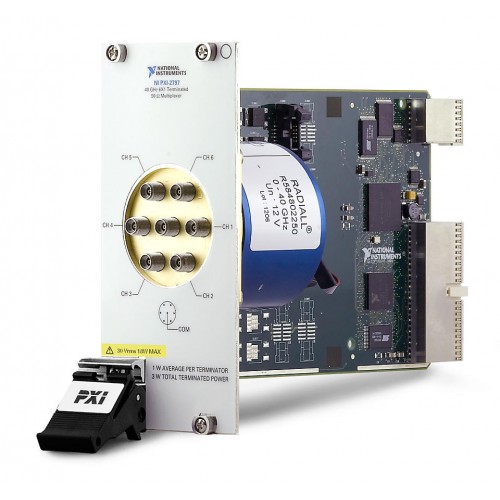

NI (National Instruments) PXI-2797 40 GHz, 50 Ω, 6x1 (SP6T) Terminated PXI RF Multiplexer Switch Module
1 image: Click to enlarge
NI (National Instruments) · PXI

PXI-2797

The NI PXI-2797, part number 782357-01, is a 40 GHz, 50 Ω, 6x1 (SP6T) terminated PXI RF multiplexer switch module.

ManufacturerNI (National Instruments)
ModelPXI-2797
Part Number782357-01
Product Type40 GHz, 50 Ω, 6x1 (SP6T) Terminated PXI RF Multiplexer Switch Module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2797

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionPXI Hybrid
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth40 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss1.1 dB
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The PXI-2797 provides a single terminated 6x1 RF multiplexer bank using electromechanical relays. It belongs to NI's PXI RF and microwave switch family and uses a PXI Hybrid bus connection.

Its 40 GHz switch bandwidth and 50 Ω signal paths support RF signal routing. Termination helps prevent reflections from open channels. Consult the NI specifications for frequency-dependent performance and operating limits before integration.

  • 40 GHz switch bandwidth with 50 Ω characteristic impedance.
  • Single-bank, 6x1 (SP6T) multiplexer configuration.
  • Terminated switching with 50 Ω termination impedance.
  • Electromechanical relay technology and PXI Hybrid bus connection.
  • Maximum switching voltage of 30 V AC and 30 V DC.
  • Specified scan rate of 5 cycles/s.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionPXI Hybrid
Maximum Switching Voltage AC30 V
Relay TypeElectromechanical
Switch Bandwidth40 GHz
Characteristic Impedence50 Ohm
Max Insertion Loss1.1 dB
Number of Channels6
Number of Banks1
TerminationYes
Supported Hardware PlatformPXI
Maximum Carry Current AC0.6 A
Maximum Switching Current DC0.6 A
Maximum Switching Voltage DC30 V
Mode (n-wire)1-wire
Number of Columns1
Number of Rows6
Row AccessYes
Scan Rate5 cycles/s
Termination Impedance50 Ohm
NI part numbers782357-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

PXI

Supported Hardware Platform

PXI-2797

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Getting Started (NI)Getting Started · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What switching configuration does the PXI-2797 provide?

It provides a single-bank, 6x1 (SP6T) terminated multiplexer with six channels.

What are its bandwidth and impedance?

The switch bandwidth is 40 GHz. Both the characteristic impedance and termination impedance are 50 Ω.

What are the specified voltage and current limits?

The preserved specifications list maximum switching voltages of 30 V AC and 30 V DC, maximum AC carry current of 0.6 A, and maximum DC switching current of 0.6 A. Consult the NI specifications for operating conditions and any applicable derating.

Which NI part number identifies this model?

The supplied verified catalog identity lists NI part number 782357-01 for the PXI-2797.
