National Instruments · PXI

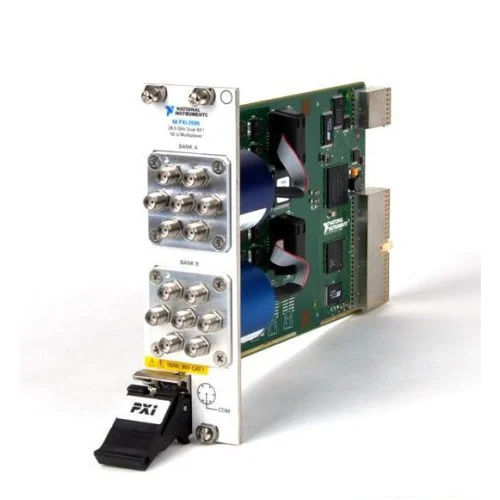

PXI-2596

The National Instruments PXI-2596 is a 26.5 GHz, 50 Ω RF multiplexer with two unterminated 6x1 banks. Onboard relay count tracking supports relay-life monitoring.

ManufacturerNational Instruments

ModelPXI-2596

Part Number778572-96

Product TypeRF multiplexer switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2596

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

TopologyDual 6x1 (SP6T)

Bandwidth26.5 GHz

Impedance50 Ω nominal

TerminationUnterminated

Connections14 SMA jacks

Form factor3U, two-slot PXI/cPCI

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2596 combines two RF multiplexer banks in one PXI module. NI identifies applications including passing high-order harmonics from PXI RF upconverters and routing multiple sources to PXI RF downconverters.

Its onboard relay count tracking provides usage information for planning relay maintenance.

Two 6x1 RF multiplexer banks within one module.
Unterminated switching topology.
Onboard relay count tracking.
Non-latching electromechanical relays.

Verified specifications

Technical data

Verified product specifications.

Topology	Dual 6x1 multiplexer
Switch bandwidth	26.5 GHz
Characteristic impedance	50 nominal Ω
Insertion loss at frequencies ≤26.5 GHz	<0.6"},{"evidence_ids":["EV-BULK-5373-7832D9EF30"],"label":"VSWR at frequencies ≤26.5 GHz","status":"VERIFIED","unit":"—","value":"55 dB
RF carry power at frequencies ≤26.5 GHz	25 W
Relay operate/release time	10 ms
Recommended cycle speed	5 channels/s
I/O connectors	14 SMA jacks
Operating ambient temperature	0 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2596

RF multiplexer switch module

Installation footprint

3U PXI/cPCI module occupying two slots.

NI recommends against switching active RF signals; momentary untermination can expose RF sources to damaging reflections.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-2596 Product PageProduct Page · ni.com

Open →

NI PXI-2596 Specifications, 374243ESpecifications · download.ni.com

Open →

PXI-2596 Dimensional DrawingsDrawings And CAD · ni.com

Open →

PXI-2596 Dimensional Drawings and CAD ModelsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-2596 include internal termination?

No. Its two 6x1 multiplexer banks are unterminated.

How much chassis space does it require?

The module uses a two-slot, 3U PXI/cPCI footprint.

Can it switch active RF signals?

NI recommends against this because switching temporarily leaves the channel unterminated, potentially causing reflections that damage an RF source. Follow the source manufacturer's termination requirements.
