National Instruments · PXI

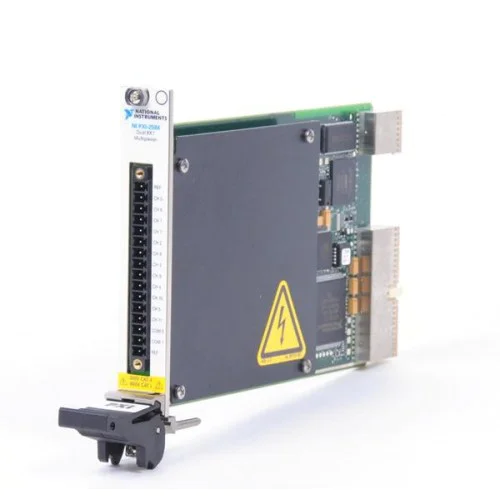

PXI-2584

The NI PXI-2584 is a 12-channel high-voltage PXI multiplexer switch module for fuel-cell and battery-stack applications. It uses reed relays and supports onboard relay counting and hardware-triggered operation.

ManufacturerNational Instruments

ModelPXI-2584

Part Number778572-84

Product TypeHigh-voltage multiplexer switch module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-2584

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Switching configuration12-channel 1-wire or 6-channel 2-wire multiplexing

Form factor3U, single-slot PXI/cPCI

Maximum scan rate600 channels/s

Voltage categories300 V CAT II; 600 V CAT I channel-to-ground

Relay technologyReed relays with onboard relay counting

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-2584 provides high-voltage signal routing within the PXI platform. NI identifies fuel-cell and battery-stack testing as product-relevant applications, with hardware triggers enabling deterministic switching.

NI-SWITCH supports 1-wire 12×1, dual 1-wire 6×1, 2-wire 6×1 and Independent topologies. User-implemented interleaved switching uses the Independent topology for stacked-signal measurements.

Configurable 1-wire and 2-wire multiplexer topologies.
Onboard relay counting for relay monitoring.
Hardware triggers support deterministic operation.
Independent topology supports user-implemented interleaved measurements.

Verified specifications

Technical data

Verified product specifications.

Maximum channel-to-ground switching voltage	300 V CAT II; 600 V DC or AC peak CAT I V
Maximum channel-to-channel switching voltage	300 V
Maximum switching or carry current	0.5 per channel or common A
Maximum DC switching power	10 per channel W
Maximum scan rate	600 channels/s
Bandwidth	≥900, typical; −3 dB with 50 Ω termination kHz
I/O connector	16-position MINI-COMBICON, 3.81 mm pitch
Form factor	3U, one-slot PXI/cPCI module

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Modular instrumentation platform

PXI-2584

High-voltage multiplexer switching

Control documentation

NI-SWITCH documents topology selection and operation.

Observe channel-to-channel, channel-to-ground and switching-power limits separately. Not for CAT III or CAT IV measurements.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI PXI-2584 Product PageProduct Page · ni.com

Open →

PXI-2584 SpecificationsSpecifications PDF · download.ni.com

Open →

NI-SWITCH User Manual: NI PXI-2584User Manual · ni.com

Open →

PXI-2584 Dimensional DrawingsDimensional Drawings And CAD Resources · ni.com

Open →

PXI-2584 Topologies and Operation ModesTechnical resource

Open →

PXI-2584 Dimensional Drawings and CAD ModelsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-2584 provide 12 two-wire channels?

No. Standard configurations include 12-channel 1-wire and 6-channel 2-wire multiplexing. Interleaved functionality for stacked signals is user-implemented using the Independent topology.

Is the PXI-2584 rated for 600 V CAT II?

No. The specifications state 300 V CAT II and 600 V CAT I channel-to-ground, with a 300 V channel-to-channel limit.

What applications does NI identify for this module?

NI identifies fuel-cell and battery-stack applications for the PXI-2584 high-voltage multiplexer.
